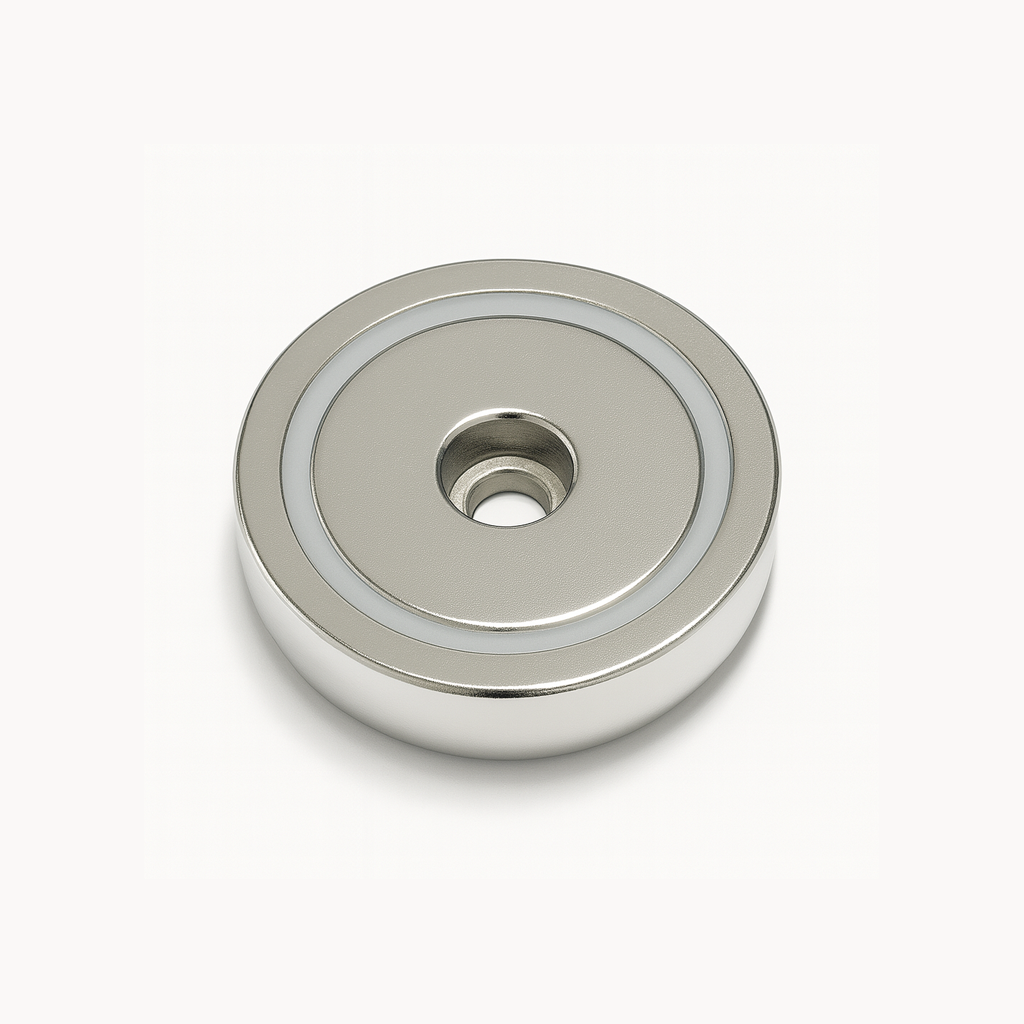

Neodymium Pot Magnet with Round Hole - 36mm x 6.5mm (Slim Profile)
Neodymium Pot Magnet with Round Hole - 36mm x 6.5mm (Slim Profile)
Available in stock
This Neodymium Pot Magnet with Round Hole (36mm diameter x 6.5mm height) is a compact yet powerful rare earth magnet designed for secure fastening and mounting applications. Featuring a 20kg pull force, this magnet delivers exceptional holding strength while maintaining a slim profile, making it ideal for industrial, commercial, and everyday use.
The round hole design allows for easy fixing with a bolt, rivet, or custom fastener, offering flexibility in applications where a standard countersunk magnet may not be suitable. Encased in a nickel-plated steel cup, the magnet’s power is significantly enhanced as the steel directs the magnetic field to the working face, ensuring maximum performance.
Key Features:
-
Size: 36mm diameter x 6.5mm height
-
Pull Force: 20kg (tested against 10mm mild steel surface)
-
Design: Central round hole for secure bolt or fastener fixing
-
Material: High-strength neodymium magnet encased in a steel pot
-
Finish: Nickel coating for durability and corrosion resistance
Common Applications:
-
Industrial clamping and fastening
-
Signage and display mounting
-
Shopfitting and retail fixtures
-
Workshop and tool organisation
-
DIY, office, and home improvement projects
The 36mm Neodymium Pot Magnet with Round Hole combines strength, versatility, and ease of installation, making it a reliable solution for engineers, tradespeople, manufacturers, and hobbyists alike.
Please allow tolerances of up to 2.5mm in thickness for this product. Contact our office for critical dimensions.
| ModelNo. | DØ | D1Ø | D2Ø | H | Holding force(kg) | Weight (g) |
| AMFYPB16 | 16 | 3.5 | 6.5 | 5 | 4 | 6 |
| AMFYPB20 | 20 | 4.5 | 8 | 7 | 6 | 12 |
| AMFYPB25 | 25 | 5.5 | 9 | 8 | 14 | 23 |
| AMFYPB32 | 32 | 5.5 | 9 | 8 | 23 | 36 |
| AMFYPB36 | 36 | 6.5 | 11 | 9 | 29 | 50 |
| AMFYPB42 | 42 | 6.5 | 11 | 9 | 32 | 73 |
| AMFYPB48 | 48 | 8.5 | 15 | 11.5 | 63 | 114 |
| AMFYPB60 | 60 | 8.5 | 15 | 15 | 95 | 240 |
| AMFYPB75 | 75 | 10.5 | 18 | 18 | 155 | 471 |
Pull Force Information
Pull Force Information
Pull force refers to the maximum holding strength of a magnet. Measured in kilograms, it represents the amount of weight a magnet can support when attached to 10mm thick mild steel, with full, flat, and direct surface-to-surface contact.
A magnet's pull force can be affected by several factors, including its orientation (horizontal vs. vertical) and the presence of any air gaps between the magnet and the surface it’s attached to.
