Neodymium Pot Magnet with Round Hole - 20mm x 7mm
Neodymium Pot Magnet with Round Hole - 20mm x 7mm
Available in stock
Magnetic Product Description:

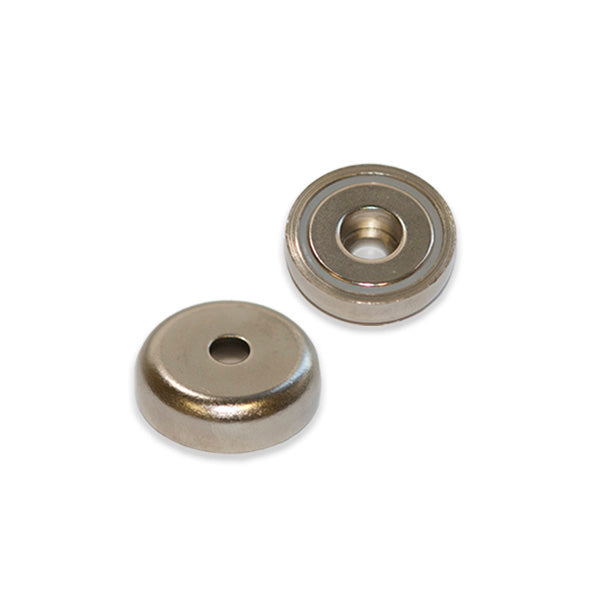

This rare earth pot magnet has an outside diameter of 20mm and an inside diameter of 4.5mm with an internal flange hole of 8mm. This round hole pot magnet has a thickness of 7mm, a pull force of 6kg and a weight of 12 grams.
Uses for our rare earth round hole pot magnets:
This Neodymium Pot Magnets has a round hole making them ideal for a range of holding mechanisms, be it slotting onto a rod, secured with a bolt or incorporated into a larger mechanical design. This 20mm diameter magnet is our second smallest pot magnet and is suitable for applications that are temporary or where a relatively low pull force is required. They are also easier to remove by hand than some of our larger, stronger pot magnets. The steel cup in which the magnet is set augments the magnetic field, creating a more powerful pull force than a stand-alone magnet. The protective cover on these pot magnets also means they are a single-sided magnet and the metal casing also helps to preserve the magnet from chipping or cracking, making it robust and reliable when in repeated use.
Pull Force Information
Pull Force Information
Pull force refers to the maximum holding strength of a magnet. Measured in kilograms, it represents the amount of weight a magnet can support when attached to 10mm thick mild steel, with full, flat, and direct surface-to-surface contact.
A magnet's pull force can be affected by several factors, including its orientation (horizontal vs. vertical) and the presence of any air gaps between the magnet and the surface it’s attached to.
