Neodymium Pot Magnet with Round Hole - 25mm x 8mm
Neodymium Pot Magnet with Round Hole - 25mm x 8mm
Available in stock
Magnetic Product Description:

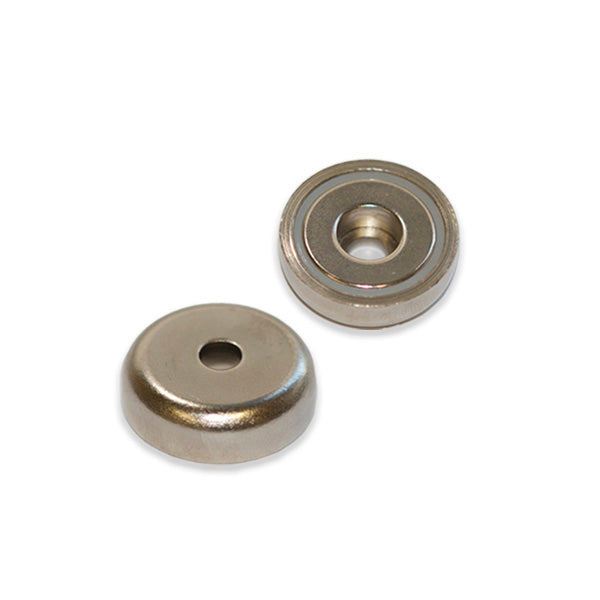

This rare earth pot magnet has an outside diameter of 25mm and an inside diameter of 5.5mm with an internal flange hole of 9mm. This round hole pot magnet has a thickness of 8mm, a pull force of 14kg and a weight of 23 grams.
Uses for our rare earth round hole pot magnets:
These Neodymium Pot Magnets have a round hole and are commonly attached using a bolt or integrated into an individual product design. The steel casing that protects the magnet from chipping and cracking also augments the magnetic field of the internal magnet. This also has the added benefit of creating a single-sided magnet that is stronger than a stand-alone magnet which can be highly beneficial in some application where there is a need to minimise any stray magnetic field. This magnet is popular with farmers, miners or anyone working with heavy machinery as its reliable holding force makes it perfect for attaching additional equipment such as electric drive systems, GPS tracking and guidance systems for mining vehicles and underground mining equipment.
Pull Force Information
Pull Force Information
Pull force refers to the maximum holding strength of a magnet. Measured in kilograms, it represents the amount of weight a magnet can support when attached to 10mm thick mild steel, with full, flat, and direct surface-to-surface contact.
A magnet's pull force can be affected by several factors, including its orientation (horizontal vs. vertical) and the presence of any air gaps between the magnet and the surface it’s attached to.
