Pull Force Information

Pull force refers to the maximum holding strength of a magnet. Measured in kilograms, it represents the amount of weight a magnet can support when attached to 10mm thick mild steel, with full, flat, and direct surface-to-surface contact.

A magnet's pull force can be affected by several factors, including its orientation (horizontal vs. vertical) and the presence of any air gaps between the magnet and the surface it’s attached to.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Neodymium Rectangular Pot Magnet with Countersunk Holes - 60mm x 13.5mm x 5mm

Name: Neodymium Rectangular Pot Magnet with Countersunk Holes - 60mm x 13.5mm x 5mm
Brand: Maglab
SKU: ZSPNCO60R
Price: 17.06 AUD
Availability: InStock

SKU: ZSPNCO60R

$17.06 for 1 to 9 items $14.43 buy 10 to 99 items and save 15% $13.32 buy 100 to 199 items and save 21% $13.21 buy 200 to 399 items and save 22% $13.03 buy 400+ items and save 23%

Tax included. Shipping calculated at checkout.

Ships from Sydney, Australia

Available in stock

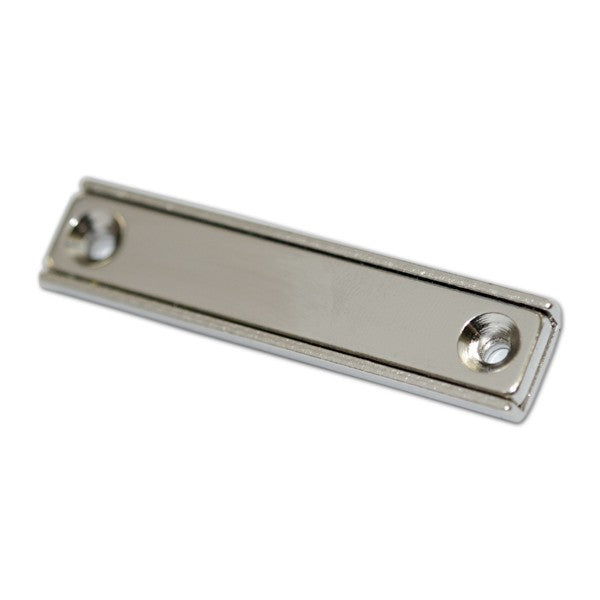

This rectangular pot magnet measures 60mm in length, 13.5mm in width, and 5mm in height. It features two countersunk holes with diameters of 3.3mm and 6.5mm, spaced 50mm apart from center to center. Weighing 27.9g, this magnet delivers a strong pull force of 30kg, making it ideal for secure, heavy-duty applications.

This neodymium rectangular pot magnet is housed within a chrome-plated steel channel that safeguards the magnet from damage during regular use. It measures 60mm in length, 13.5mm in width, and 5mm in height, featuring two countersunk holes with diameters ranging from 3.3mm to 6.5mm for secure mounting.

These rectangular pot magnets feature a countersunk hole on their north pole and provide strong adhesion to steel surfaces, making them highly versatile and practical. Ideal for mounting and various DIY or home improvement tasks, they are commonly used as catches for cabinet and shower doors or as secure tool holders.

Product Code	L	L1	W	H	D1	D2	Weight	Pull Force
AMFYPSNI10	10mm	5mm	13.5mm	5mm	3.3mm	6.5mm	4.5g	4kg
AMFYPSNI20	20mm	10mm	13.5mm	5mm	3.3mm	6.5mm	9.2g	8kg
AMFYPSNI40	40mm	30mm	13.5mm	5mm	3.3mm	6.5mm	18.4g	17kg
AMFYPSNI60	60mm	50mm	13.5mm	5mm	3.3mm	6.5mm	27.9g	30kg
AMFYPSNI80	80mm	70mm	13.5mm	5mm	3.3mm	6.5mm	37.8g	33kg
AMFYPSNI100	100mm	90mm	13.5mm	5mm	3.3mm	6.5mm	47.8g	36kg
AMFYPSNI120	120mm	110mm	13.5mm	5mm	3.3mm	6.5mm	56g	40kg
