Neodymium Rectangular Pot Magnet with Countersunk Holes - 10mm (L) x 13.5mm (W)
Neodymium Rectangular Pot Magnet with Countersunk Holes - 10mm (L) x 13.5mm (W)
Available in stock
Neodymium Rectangular Pot Magnet Description
SKU: ZSPNCO10R

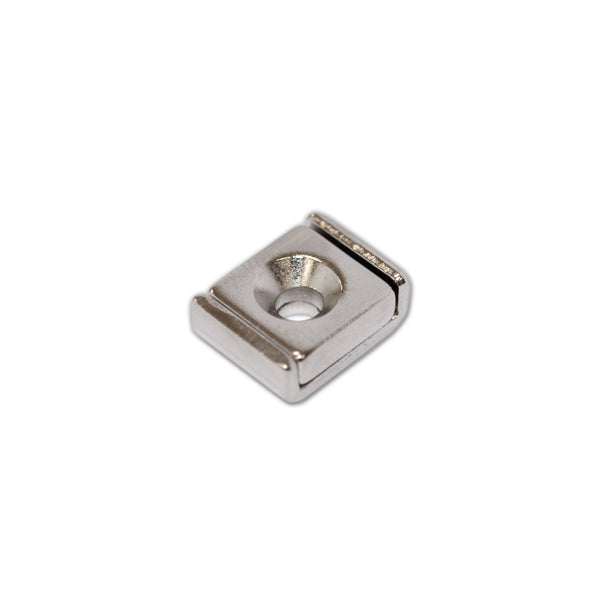

The Neodymium Rectangular Pot Magnet - 10mm x 13.5mm x 5mm is a compact, high-strength mounting magnet designed for secure attachment to steel and other ferromagnetic surfaces. Despite its small size and weight of just 4.5g, this rectangular pot magnet provides a strong 4kg pull force, making it ideal for space-restricted mounting, holding and fastening applications.
The neodymium magnet is encased within a protective steel channel, which helps enhance the magnetic performance of the active face while protecting the magnet from impact and everyday damage. A countersunk mounting hole allows the magnet to be securely installed with a suitable countersunk screw.
Key Features
SKU: ZSPNCO10R
Length: 10mm
Width: 13.5mm
Height: 5mm
Magnet material: Neodymium rare earth
Housing: Steel channel
Pull force: 4kg
Weight: 4.5g
Mounting: Single countersunk hole
Countersunk hole diameter: 3.3mm to 6.5mm
Hole centre to magnet edge: 5mm
Magnetic pole: Countersunk mounting face is the north pole
Profile: Compact 5mm height
Steel Channel Design
This rectangular pot magnet combines a powerful neodymium core with a protective steel channel. The steel housing helps protect the brittle neodymium material from physical damage while concentrating the magnetic field at the active face for effective holding against compatible steel surfaces.
Countersunk Mounting Hole
The integrated countersunk hole allows the magnet to be mechanically fastened using a suitable countersunk screw. This provides a neat, secure installation while maintaining the magnet's compact profile. Once installed, the magnetic face can hold compatible steel components without requiring an additional mechanical latch.
Applications
This compact rectangular neodymium pot magnet is suitable for a wide range of commercial, workshop and DIY applications, including:
Cabinet and cupboard door catches
Shower door catches and closures
Metal tool holders
DIY and home improvement projects
Magnetic mounting systems
Displays and signage
Fixtures and fittings
Workshop organisation
Compact industrial holding applications
Why Choose a Rectangular Neodymium Pot Magnet?
Rectangular pot magnets combine the high magnetic strength of neodymium with the durability and mounting convenience of a steel housing. At only 10mm long, this model is particularly useful where installation space is limited but a reliable magnetic hold is required. Its 4kg pull force and countersunk mounting hole make it a practical solution for compact catches, fixtures and removable mounting systems.
Important Pull Force Information
The stated 4kg pull force represents the magnet's rated holding performance under suitable test conditions. Actual holding force may vary depending on the thickness, composition and surface condition of the steel, air gaps, coatings, direction of load and the amount of contact between the magnet and target surface.
Pull Force Information
Pull Force Information
Pull force refers to the maximum holding strength of a magnet. Measured in kilograms, it represents the amount of weight a magnet can support when attached to 10mm thick mild steel, with full, flat, and direct surface-to-surface contact.
A magnet's pull force can be affected by several factors, including its orientation (horizontal vs. vertical) and the presence of any air gaps between the magnet and the surface it’s attached to.
