Pull Force Information

Pull force refers to the maximum holding strength of a magnet. Measured in kilograms, it represents the amount of weight a magnet can support when attached to 10mm thick mild steel, with full, flat, and direct surface-to-surface contact.

A magnet's pull force can be affected by several factors, including its orientation (horizontal vs. vertical) and the presence of any air gaps between the magnet and the surface it’s attached to.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Neodymium Rectangular Pot Magnet with Countersunk Holes - 80mm x 13.5mm x 5mm

Name: Neodymium Rectangular Pot Magnet with Countersunk Holes - 80mm x 13.5mm x 5mm
Brand: Maglab
SKU: ZSPNCO80R
Price: 29.77 AUD
Availability: InStock

SKU: ZSPNCO80R

$29.77 for 1 to 9 items $25.25 buy 10 to 99 items and save 15% $22.96 buy 100 to 199 items and save 22% $22.77 buy 200 to 399 items and save 23% $22.49 buy 400+ items and save 24%

Tax included. Shipping calculated at checkout.

Ships from Sydney, Australia

Available in stock

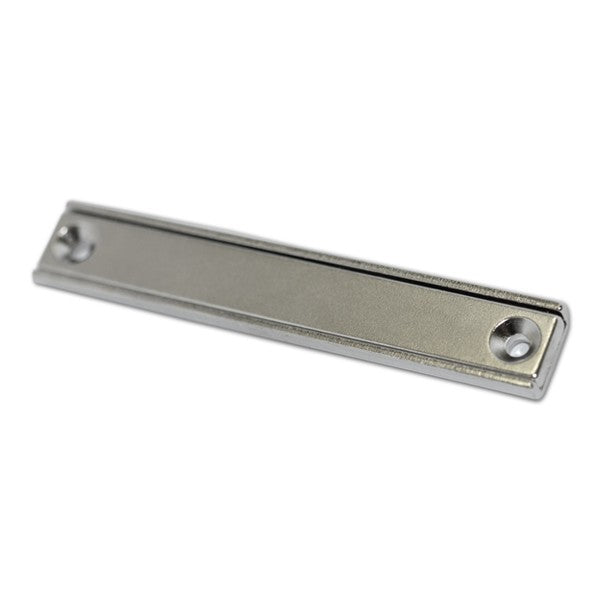

This rectangular pot magnet measures 80mm in length, 13.5mm in width, and 5mm in height. It features two countersunk holes with diameters of 3.3mm and 6.5mm, spaced 70mm apart center to center. With a weight of 37.8g, this magnet offers a pull force of 33kg, delivering strong and reliable holding power.

This neodymium rectangular pot magnet is encased within a chrome-plated steel channel that protects it from everyday wear and damage. The magnet measures 80mm in length, 13.5mm in width, and 5mm in height, featuring two countersunk holes with diameters ranging from 3.3mm to 6.5mm for secure installation.

These rectangular pot magnets combine versatility with practicality, featuring a countersunk hole on the north pole and strong adhesion to steel surfaces. They are ideal for mounting, home improvement tasks, and DIY projects like creating secure tool holders. A popular use for these magnets is as cabinet door or shower door catchers.

Product Code	L	L1	W	H	D1	D2	Weight	Pull Force
AMFYPSNI10	10mm	5mm	13.5mm	5mm	3.3mm	6.5mm	4.5g	4kg
AMFYPSNI20	20mm	10mm	13.5mm	5mm	3.3mm	6.5mm	9.2g	8kg
AMFYPSNI40	40mm	30mm	13.5mm	5mm	3.3mm	6.5mm	18.4g	17kg
AMFYPSNI60	60mm	50mm	13.5mm	5mm	3.3mm	6.5mm	27.9g	30kg
AMFYPSNI80	80mm	70mm	13.5mm	5mm	3.3mm	6.5mm	37.8g	33kg
AMFYPSNI100	100mm	90mm	13.5mm	5mm	3.3mm	6.5mm	47.8g	36kg
AMFYPSNI120	120mm	110mm	13.5mm	5mm	3.3mm	6.5mm	56g	40kg
