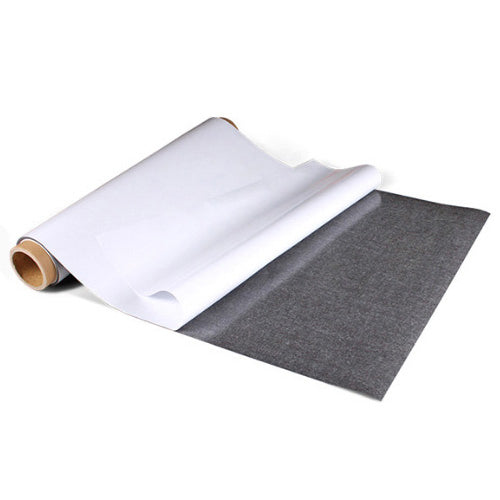

Self-Adhesive Magnetic Roll – 0.6mm x 620mm (Per Metre) | Supplied as Continuous Length

The Self-Adhesive Magnetic Roll – 0.6mm x 620mm (Per Metre) is a flexible adhesive-backed magnetic sheeting material measuring 620mm wide x 0.6mm thick and sold by the metre. Multiple metres are supplied as a continuous length, making this magnetic roll suitable for larger projects, repeat production and custom-cut magnetic products.

The self-adhesive side is non-magnetic and is designed to bond to a suitable item or substrate. The opposite magnetic face allows the finished item to attach to compatible ferromagnetic iron and steel surfaces. This makes the material ideal for converting signs, labels, photographs, promotional material, displays and other suitable lightweight items into removable and repositionable magnetic products.

Also known as self-adhesive magnetic sheeting, adhesive-backed magnetic roll, flexible magnetic sheet, magnetic backing material, peel-and-stick magnetic sheeting or self-stick magnetic roll, this 620mm wide material is suitable for commercial, industrial, retail, office, educational and creative applications.

Key Features

• Width: 620mm
• Thickness: 0.6mm
• Sale unit: Per metre
• Nominal size per metre: 1000mm long x 620mm wide x 0.6mm thick
• Approximate area per metre: 0.62m²
• Supply format: Continuous length when multiple metres are ordered
• Flexible magnetic construction
• Self-adhesive backing
• Adhesive side is non-magnetic
• Magnetic face attaches to compatible ferromagnetic steel
• Suitable for cutting into custom sizes and shapes
• Converts suitable non-magnetic items into magnetic products
• Removable and repositionable on compatible steel surfaces
• Permanent magnetic operation
• No electricity, batteries or charging required

Common Applications

• Magnetic signs
• Warehouse labels
• Racking identification
• Shelf labels
• Retail displays
• Point-of-sale materials
• Photographs
• Calendars
• Business cards
• Promotional magnets
• Office notices
• Storage labels
• Equipment identification
• Educational resources
• Craft projects
• Custom magnetic products

620mm Wide x 0.6mm Thick Magnetic Sheeting

This self-adhesive magnetic material measures 620mm wide x 0.6mm thick.

When purchasing one metre, the nominal material size is 1000mm long x 620mm wide x 0.6mm thick, providing approximately 0.62 square metres of flexible magnetic material.

The broad 620mm width provides flexibility when producing:

• Large magnetic signs
• Multiple smaller labels
• Magnetic strips
• Display graphics
• Promotional magnets
• Custom shapes
• Magnetic backing pieces

At 0.6mm thick, the material provides a slim, flexible magnetic profile suitable for lightweight magnetic backing applications.

Sold Per Metre and Supplied as a Continuous Length

This magnetic roll is sold per metre. When multiple metres are ordered, the material is supplied as a continuous length rather than individual one-metre pieces.

For example:

• Quantity 1: 1 metre
• Quantity 2: 2 metre continuous length
• Quantity 3: 3 metre continuous length
• Quantity 5: 5 metre continuous length

This ordering format is useful for customers who need longer uninterrupted sections of magnetic material or who want to cut multiple finished products from a single continuous roll length.

How Self-Adhesive Magnetic Sheeting Works

This product combines two different attachment methods.

The self-adhesive side is designed to bond to the back of a suitable non-magnetic item or substrate.

The opposite magnetic face then allows that item to attach to a compatible ferromagnetic surface.

For example, the material can be applied to the back of a:

• Sign
• Printed graphic
• Label
• Photograph
• Notice
• Promotional card
• Display panel
• Identification marker

Once the adhesive has bonded, the finished item can be positioned on compatible steel shelving, cabinets, racking, machinery, display fixtures or other ferromagnetic surfaces.

The adhesive side itself is non-magnetic.

Magnetic Backing for Signs and Displays

Self-adhesive magnetic sheeting provides a convenient method for converting suitable signs and displays into removable magnetic products.

Potential applications include:

• Temporary signage
• Promotional displays
• Product information
• Retail signage
• Directional notices
• Equipment identification
• Workplace instructions
• Event displays

Instead of permanently adhering the finished sign to the target steel surface, the magnetic backing allows it to be removed or repositioned as required.

Warehouse and Industrial Labelling

The combination of a 620mm width and continuous-length supply makes this magnetic material useful for producing multiple labels for warehouses, factories and industrial facilities.

Potential applications include:

• Racking labels
• Shelf identification
• Storage locations
• Inventory zones
• Bin labels
• Equipment identification
• Production labels
• Workstation signs
• Temporary instructions

Magnetic labels can be repositioned when stock locations, warehouse layouts or production requirements change.

Promotional Products and Printed Materials

Self-adhesive magnetic material can also be applied to suitable lightweight printed products.

Potential uses include:

• Business cards
• Calendars
• Photographs
• Promotional cards
• Advertising materials
• Save-the-date cards
• Printed notices
• Custom fridge magnets

The amount of magnetic material required should be selected according to the dimensions, weight and rigidity of the finished item.

Cut to Custom Sizes and Shapes

The flexible magnetic roll can be cut using suitable equipment to produce:

• Rectangles
• Squares
• Strips
• Labels
• Magnetic tabs
• Backing pieces
• Custom shapes

The 620mm width provides flexibility when planning cutting layouts, while the continuous-length format can help accommodate longer pieces and repeat production.

Always select cutting equipment suitable for the 0.6mm material thickness and required edge finish.

Applying the Self-Adhesive Backing

Good surface preparation is important for reliable adhesive performance.

Before applying the material:

• Ensure the substrate is clean and dry
• Remove dust and loose contamination
• Remove oils and grease
• Confirm the substrate is suitable for adhesive bonding
• Position the material carefully
• Apply even pressure across the bonded area
• Avoid unnecessary contact with the exposed adhesive
• Allow appropriate bonding time before use where required

Adhesive performance depends on the substrate, surface texture, preparation, temperature and environmental conditions.

The specific adhesive chemistry or brand has not been supplied, so suitability should be tested before specialised or large-scale use.

Compatible Magnetic Surfaces

The magnetic face is designed to attach to compatible ferromagnetic iron and steel surfaces.

Suitable target surfaces may include:

• Mild steel
• Iron
• Magnetic steel
• Steel shelving
• Steel cabinets
• Warehouse racking
• Magnetic whiteboards
• Compatible machinery
• Steel display fixtures

Not every metallic surface is magnetically receptive.

This product will not effectively attach magnetically to materials such as:

• Aluminium
• Copper
• Brass
• Plastic
• Timber
• Glass

Many stainless steel grades may also be weakly magnetic or non-magnetic and should be tested before use.

Magnetic Holding Performance

The practical magnetic attachment of flexible magnetic sheeting depends on factors including:

• Size of the finished magnetic piece
• Available magnetic contact area
• Target steel composition
• Target steel thickness
• Surface flatness
• Paint and coatings
• Air gaps
• Dirt and contamination
• Weight of the attached item
• Load direction

Flexible magnetic materials generally perform best when a broad magnetic area has close, flat contact with clean ferromagnetic steel.

No specific pull force or magnetic flux density has been supplied for this product and these values should not be assumed.

Air Gaps and Surface Contact

Magnetic attraction reduces as the distance between the magnetic sheeting and target steel increases.

Performance can therefore be reduced by:

• Paint
• Protective coatings
• Films
• Dirt
• Uneven surfaces
• Curvature
• Physical gaps

For improved attachment, maximise close contact between the magnetic face and compatible ferromagnetic steel.

Flexible Magnetic Sheeting vs Rigid Magnets

Flexible magnetic sheeting and rigid permanent magnets are intended for different applications.

Self-adhesive flexible magnetic sheeting is particularly suited to:

• Signs
• Labels
• Photographs
• Promotional materials
• Displays
• Magnetic backing
• Large-area magnetic products
• Custom-cut shapes

Rigid neodymium magnets are generally preferred where substantially higher magnetic force is required from a small physical area.

This 0.6mm magnetic roll should therefore be selected for its flexibility, slim profile, adhesive backing, large working area and customisation, rather than high-force magnetic holding.

Technical Specifications

• Product Type: Self-Adhesive Flexible Magnetic Roll
• Alternative Names: Self-Adhesive Magnetic Sheeting, Adhesive-Backed Magnetic Roll, Flexible Magnetic Sheet, Magnetic Backing Material, Peel-and-Stick Magnetic Sheeting
• Width: 620mm
• Thickness: 0.6mm
• Sale Unit: Per Metre
• Nominal Size Per Metre: 1000mm x 620mm x 0.6mm
• Approximate Area Per Metre: 0.62m²
• Supply Format: Continuous Length for Multiple Metres
• Construction: Flexible Magnetic Material with Self-Adhesive Backing
• Adhesive Side: Non-Magnetic
• Magnetic Side: Designed for attachment to compatible ferromagnetic surfaces
• Magnetic Operation: Permanent
• Power Required: None
• Target Surfaces: Compatible ferromagnetic iron and steel
• Primary Functions: Magnetic backing, signage, labelling, displays and identification
• Typical Applications: Warehouses, retail, offices, signage, promotional products and custom magnetic products

Storage and Handling

To help maintain the condition of the magnetic material and adhesive backing:

• Store in a clean, dry environment
• Keep the adhesive liner in place until installation
• Avoid contaminating the adhesive
• Keep the magnetic face free from ferrous debris
• Avoid sharp folds and permanent creases
• Use suitable cutting equipment
• Avoid excessive heat unless temperature suitability has been confirmed
• Test adhesive compatibility before large production runs

Glassboard Compatibility

Glassboards generally create too much separation between flexible magnetic material and the magnetically receptive layer behind the glass. This additional gap significantly reduces the magnetic attraction available from standard flexible magnetic products.

Please note, this product alongside all flexible magnetic products are not compatible with glassboards.

Please Note

This product is a Self-Adhesive Magnetic Roll measuring 620mm wide x 0.6mm thick, sold per metre and supplied as a continuous length when multiple metres are ordered. One metre provides a nominal 1000mm x 620mm section, or approximately 0.62m² of material.

The adhesive side is non-magnetic and is designed to bond to a suitable substrate, while the magnetic face attaches to compatible ferromagnetic iron and steel surfaces.

No specific pull force, magnetic flux density, magnetic material grade, adhesive chemistry or brand, dimensional tolerance, maximum operating temperature or environmental rating has been supplied and these specifications should not be assumed.

Actual magnetic performance depends on the size and contact area of the finished piece, target steel composition and thickness, surface condition, air gaps and the weight and orientation of the attached item. Adhesive performance depends on substrate compatibility, surface preparation, installation and environmental conditions.

Please note, this product alongside all flexible magnetic products are not compatible with glassboards.
