Round Grate Magnet – 200mm diameter | Min 10,000 Gauss
Round Grate Magnet – 200mm diameter | Min 10,000 Gauss
Available in stock

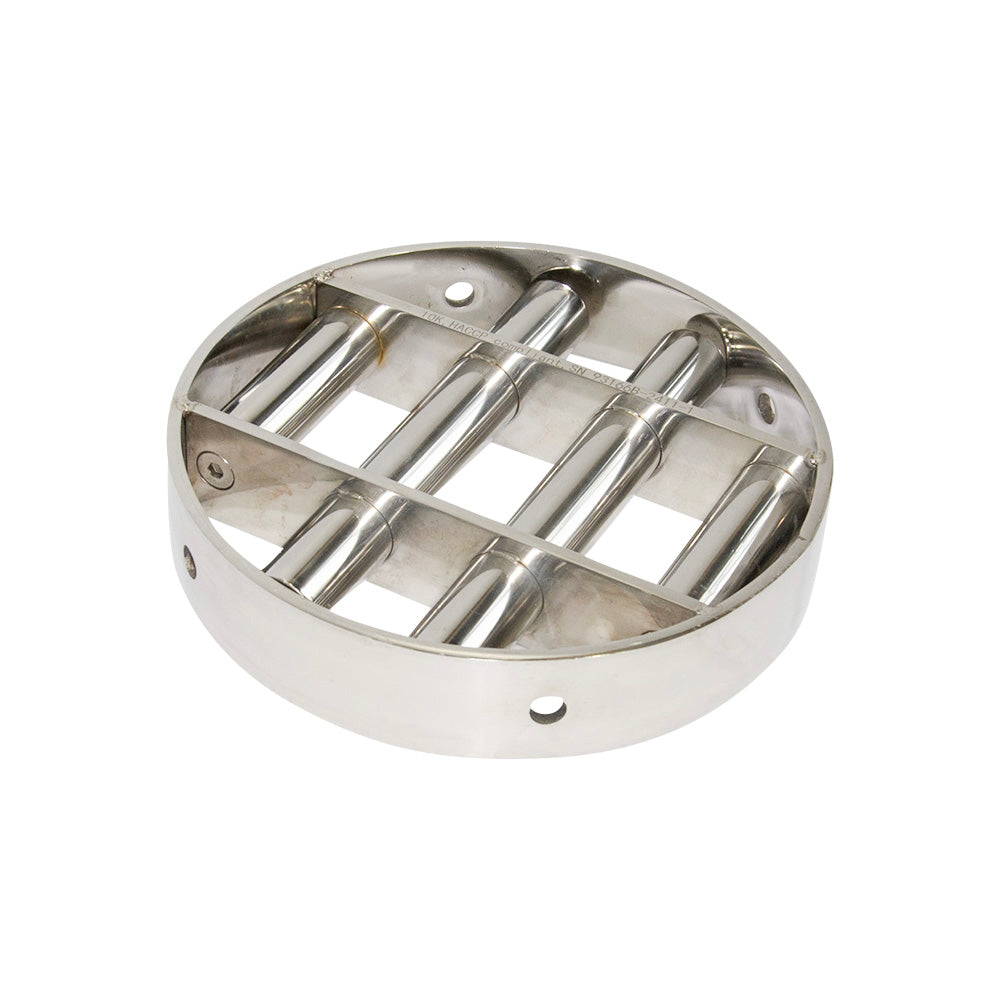

This 200mm Round Grate Magnet is designed with powerful Rare Earth Neodymium magnets, providing a minimum magnetic strength of 10,000 Gauss. It features 4 magnet bars, each spaced 50mm apart with a 25mm gap beneath each bar, to ensure maximum efficiency in capturing and removing ferrous particles from your production flow.
Key Features:
- Magnetic Strength: Minimum 10,000 Gauss for superior ferrous particle removal.
- Structure: 4 magnetic bars spaced 50mm apart, with 25mm clearance between each bar.
- Durability: Designed for industrial use, with easy maintenance and cleaning.
Applications:
- Industries: Ideal for food processing, plastic manufacturing, and recycling industries where effective removal of iron particles and other ferrous contaminants is critical.
- Installation & Maintenance:
With the advancements in magnetic technology, modern Rare Earth Neodymium magnets provide up to six times the strength of traditional ceramic-based magnets. This ensures that your production line remains free from foreign matter, enhancing product quality without interrupting workflow.
For custom-built grate magnets tailored to your specific needs, contact our office for more information.
Pull Force Information
Pull Force Information
Pull force refers to the maximum holding strength of a magnet. Measured in kilograms, it represents the amount of weight a magnet can support when attached to 10mm thick mild steel, with full, flat, and direct surface-to-surface contact.
A magnet's pull force can be affected by several factors, including its orientation (horizontal vs. vertical) and the presence of any air gaps between the magnet and the surface it’s attached to.
