Rectangular Stainless Steel Bars for Grate Magnet Frame | 500mm x 40mm x 5mm | SOLD PER PAIR

Product Description

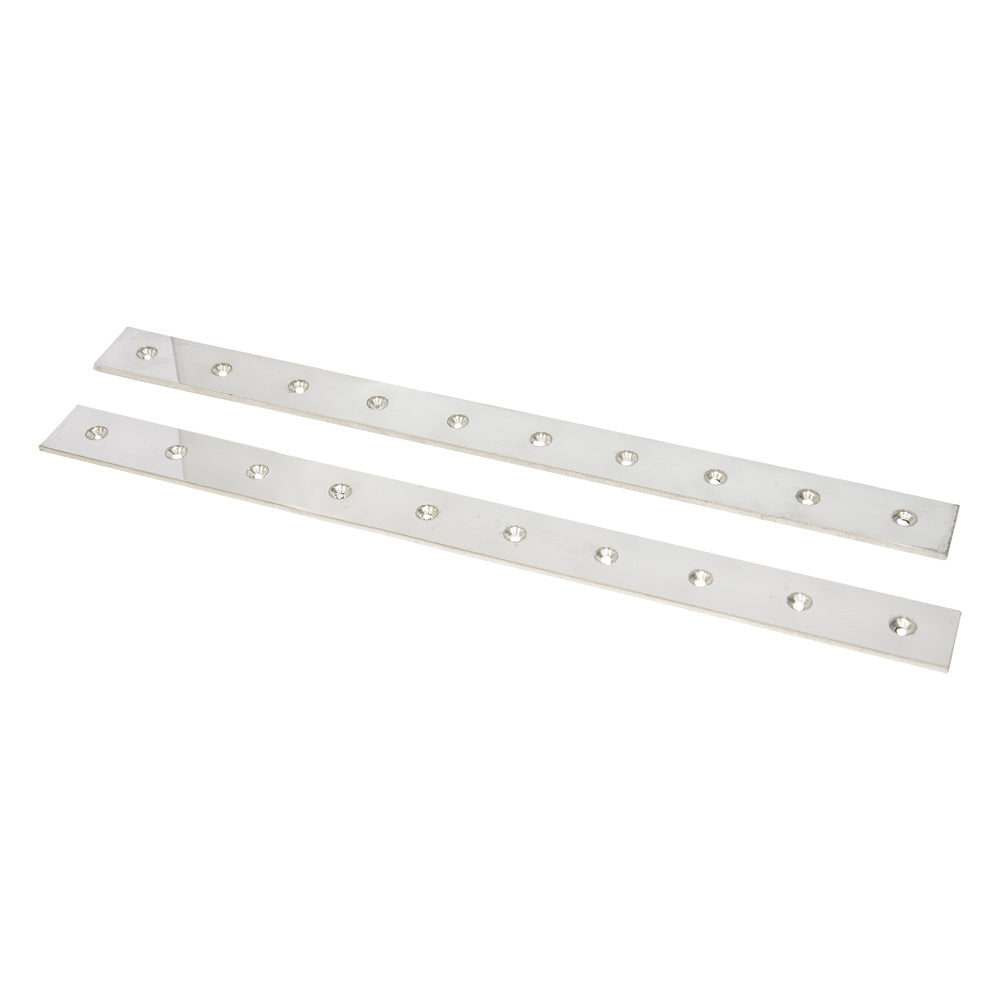

This pair of rectangular Stainless-Steel 304 bars are 500mm long, 40mm wide and 5mm thick. Each bar consists of 10 x M6 countersunk centre holes spaced at 50mmm apart. Fixing screws are included to build your own Grate Magnet. Separator Bar magnets are sold separately.

Uses for Rectangular Stainless-Steel Bars

Stainless Steel Grate Magnet Bars – 500mm x 40mm x 5mm | Pair

This pair of rectangular Stainless Steel 304 Grate Magnet Bars is designed for building or configuring magnetic grate separation systems. Each bar measures 500mm long x 40mm wide x 5mm thick and features 10 x M6 countersunk centre holes, spaced at 50mm intervals.

Manufactured from durable 304 stainless steel, these flat mounting bars are designed to hold multiple magnetic separator bars to create a grate magnet assembly. Stainless steel fixing screws are included for convenient assembly. Magnetic separator bars are sold separately.

Key Features

• Quantity: Pair (2 bars)

• Dimensions: 500mm long x 40mm wide x 5mm thick

• Material: Stainless Steel 304

• Mounting holes: 10 x M6 countersunk centre holes per bar

• Hole spacing: 50mm

• Fixings: Stainless steel fixing screws included

• Application: Building and configuring grate magnet systems

• Separator bars: Sold separately

Uses for Stainless Steel Grate Magnet Bars

These rectangular stainless steel bars are component parts used to construct Grate Magnet systems for magnetic separation applications.

Grate magnets are commonly installed in food processing and other material-handling environments to help capture unwanted ferrous metal contamination from free-flowing products. They can be positioned within chutes, hoppers and other suitable points along a processing line where raw ingredients, powders, granules or other materials pass across the magnetic separator bars.

When fitted with suitable magnetic separator bars, the assembled grate can attract and retain ferrous contaminants such as:

• Metal swarf and fragments

• Iron and steel particles

• Pieces of ferrous wire

• Nails

• Screws and steel fasteners

• Other unwanted ferrous contamination

This helps prevent captured ferrous material from continuing further through the production process.

Specifications

Product Type: Grate Magnet Mounting Bars / End Plates
Quantity: 2 bars per pair
Length: 500mm
Width: 40mm
Thickness: 5mm
Material: Stainless Steel 304
Countersunk Holes: 10 per bar
Hole Size: M6
Hole Spacing: 50mm
Fixing Screws: Included
Magnetic Separator Bars: Sold separately

Build Your Own Grate Magnet

Each pair of stainless steel mounting bars can be fitted with multiple stainless steel magnetic separator tubes, allowing a grate magnet to be configured for different processing and separation requirements.

The 10 mounting positions spaced at 50mm intervals provide attachment points for compatible separator bars. Stainless steel fixing screws are supplied with the mounting plates for assembly.

Compatible Magnetic Separator Bars are available separately.

Food Processing and Industrial Applications

When assembled with suitable magnetic separator bars, grate magnets can be used in boutique and industrial-scale food processing facilities as well as other commercial processing environments.

Typical applications include installation within:

• Food processing lines

• Ingredient handling systems

• Chutes and hoppers

• Powder and granular material processing

• Raw material handling systems

• Manufacturing and industrial processing equipment

Important Information

These stainless steel bars are structural components and are not magnetic separator bars themselves. Magnetic separator bars must be purchased separately to create a functioning magnetic grate system.

The effectiveness of the completed grate magnet will depend on the type, strength, configuration and positioning of the magnetic separator bars used, as well as the characteristics and flow rate of the material being processed.
