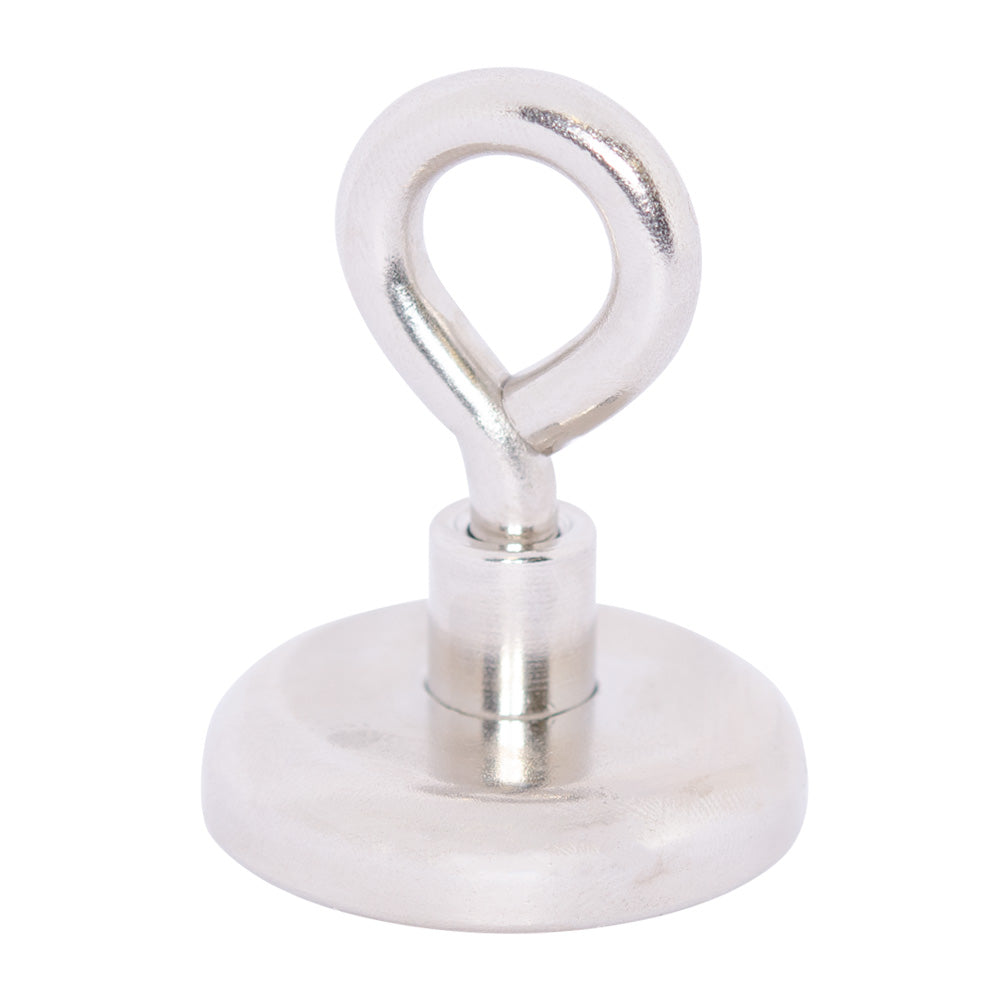

Neodymium Pot Magnet with Threaded Eyelet - 75mm x 8mm

Magnetic Product Description:

This Rare Earth Threaded Eyelet Pot Magnet has a pull force of 164kg and a weight of 560 grams. It has a diameter of 75mm, a total height of 25mm and a magnet housing thickness of 8mm. This neodymium pot magnet has an M10 thread with an 8mm eyelet.

Uses for our Rare Earth Threaded Eyelet Pot Magnets:

These super strong Neodymium Threaded eyelets have an incredible pull force of 164kg! This is due to the strong nature of rare earth magnets, as well as the steel casing around the magnet. The steel casing manipulates the magnetic field around to the base/exposed side of the product, amplifying the pull force significantly. They are also fitted with a thread and a removable eyelet, giving the magnet a range of applications, most suited to workshops and construction sites. They can be used to secure important items or cable out of the way, but due to the high pull force of these eyelets, they can be used to hold much heavier items if needed. The reliability and versatility of this magnet makes it one of the most popular in our range!

Pull Force:

The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet.
