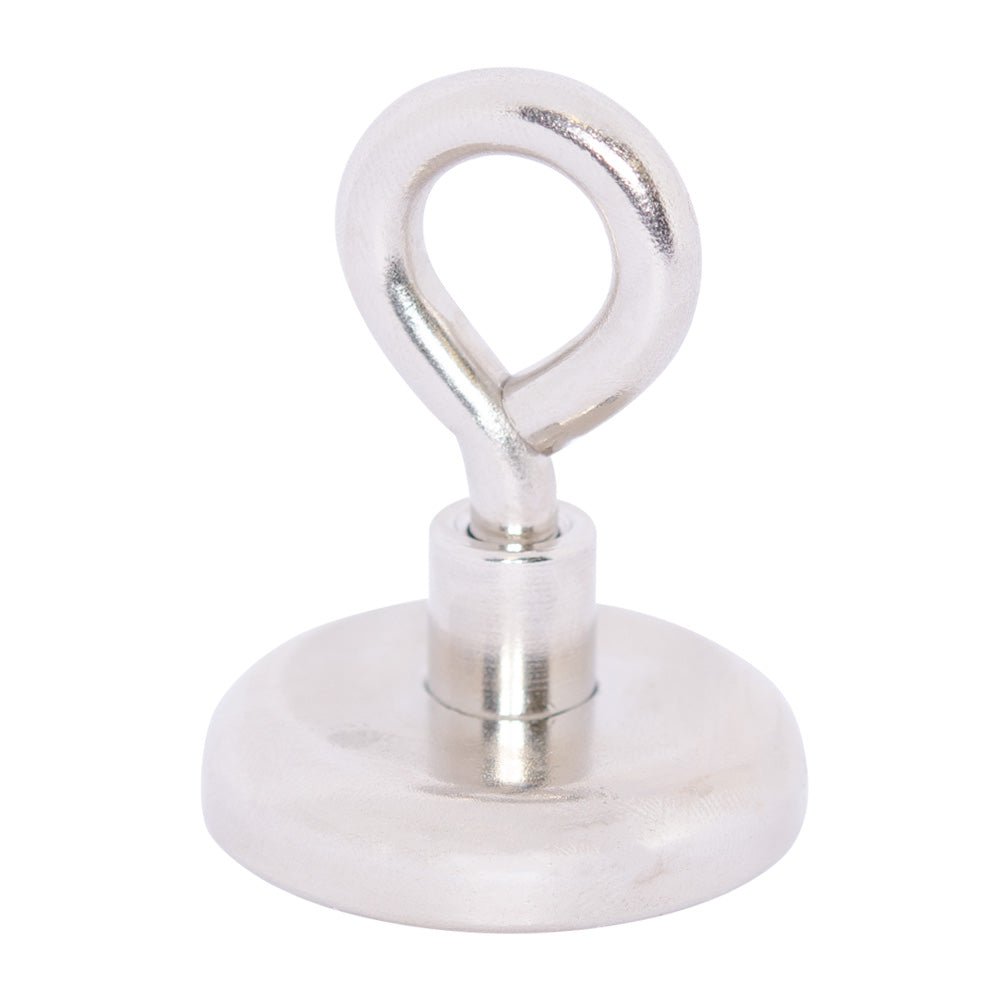

Neodymium Pot Magnet with Threaded Eyelet - 60mm x 8mm
Neodymium Pot Magnet with Threaded Eyelet - 60mm x 8mm
Available in stock
Magnetic Product Description:
This Rare Earth Threaded Eyelet Pot Magnet has a pull force of 113kg and a weight of 282 grams. It has a diameter of 60mm, a total height of 23mm and a magnet housing thickness of 15mm. This neodymium pot magnet has an M8 thread with an 8mm eyelet.
Uses for our Rare Earth Threaded Eyelet Pot Magnets:
These Neodymium holding pot magnets are high strength rare earth magnets in a mild steel cap for extra protection against chipping or cracking. Due to the protective cover on these pot magnets, they are a single sided magnet which allows for a non-destructive and easy solution for attaching and suspending objects.
Pull Force:
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet.
Pull Force Information
Pull Force Information
Pull force refers to the maximum holding strength of a magnet. Measured in kilograms, it represents the amount of weight a magnet can support when attached to 10mm thick mild steel, with full, flat, and direct surface-to-surface contact.
A magnet's pull force can be affected by several factors, including its orientation (horizontal vs. vertical) and the presence of any air gaps between the magnet and the surface it’s attached to.
