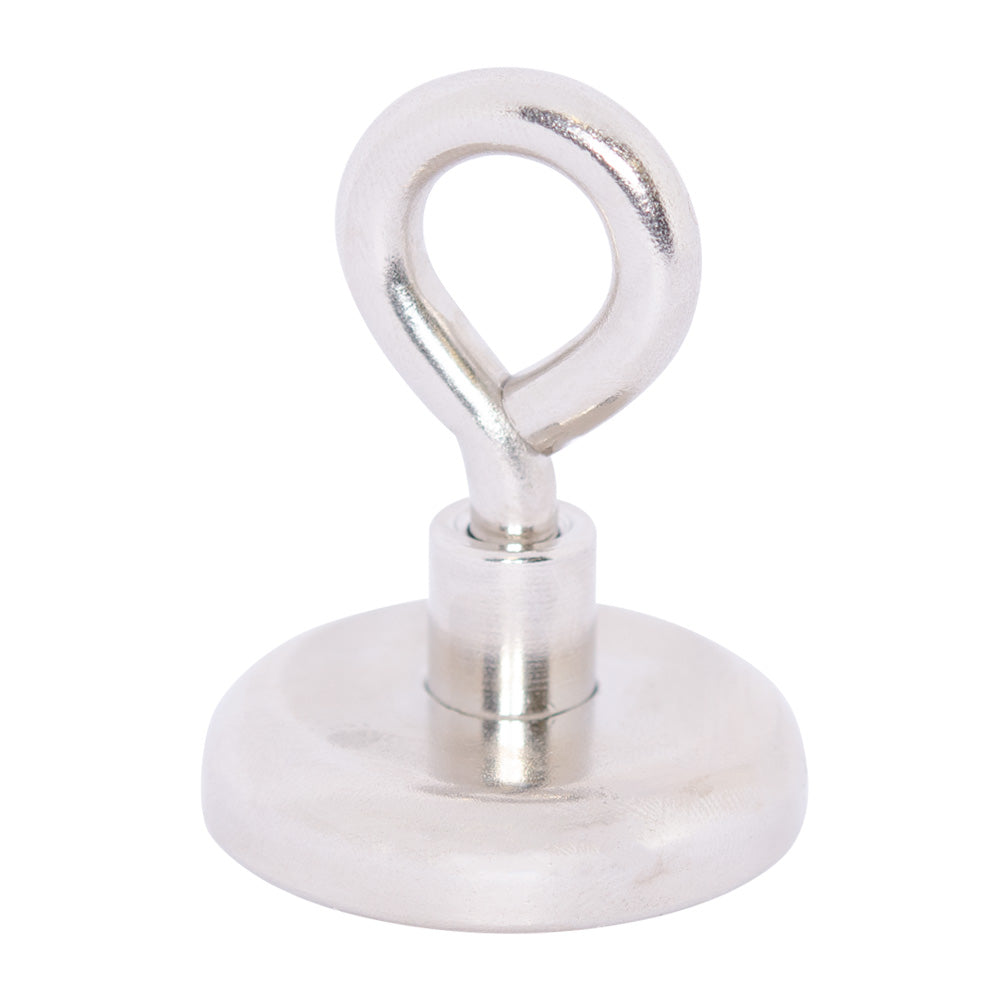

Neodymium Pot Magnet with Threaded Eyelet - 36mm x 6mm
Neodymium Pot Magnet with Threaded Eyelet - 36mm x 6mm
Available in stock
Magnetic Product Description:
This Rare Earth Threaded Eyelet Pot Magnet has a pull force of 41kg and a weight of 68 grams. It has a diameter of 36mm, a total height of 41mm and a magnet housing thickness of 8mm. This neodymium pot magnet has an M6 thread with an 6mm eyelet. It is identified by the magnet part number NP3618TEB.
Uses for our Rare Earth Threaded Eyelet Pot Magnets:
Our Neodymium Threaded Eyelets are a great solution to hanging and suspension applications. The strong rare earth magnet within a steel casing can be fixed to any ferrous metallic surface and have a secure and reliable hold. The steel casing manipulates the magnetic field around to the exposed side, amplifying the pull force significantly. These small magnets have an incredibly strong pull force for their size - this one has a diameter of only 36mm and an impressive pull force of 41kg! The eyelets can be easily removed and re-installed into the female thread of the magnet, allowing for cables to be threaded through or other items to be suspended from any ferrous metallic surface. These Neo threaded eyelet magnets add versatility and convenience to the home or workplace.
image">
Pull Force:
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet.
Pull Force Information
Pull Force Information
Pull force refers to the maximum holding strength of a magnet. Measured in kilograms, it represents the amount of weight a magnet can support when attached to 10mm thick mild steel, with full, flat, and direct surface-to-surface contact.
A magnet's pull force can be affected by several factors, including its orientation (horizontal vs. vertical) and the presence of any air gaps between the magnet and the surface it’s attached to.
