Neodymium Pot Magnet with Threaded Eyelet - 25mm x 42mm

Eyelet Neodymium Holding Pot Description:

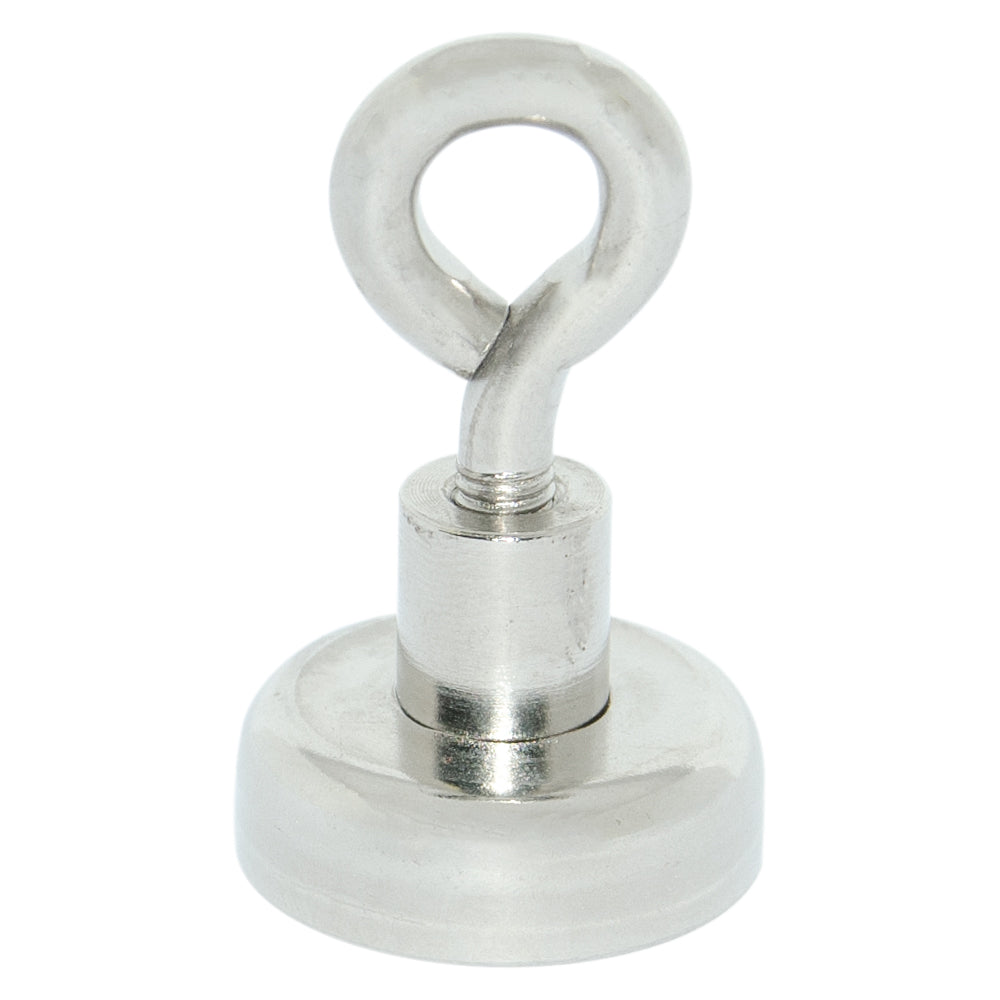

This Rare Earth Threaded Eyelet Pot Magnet is extremely high strength with a pull strength of 22kg and a weight of 37 grams. It has a diameter of 25mm, a total height of 42mm and a magnet housing height of 18mm. This Neodymium Pot Magnet has an M5 thread with a 5mm eyelet.

Uses for our Rare Earth Threaded Magnetic Pots:

A great solution for storage as well as temporary suspension applications, these Neodymium Holding Magnets with a threaded eyelet are some of our most popular items. The eyelet itself can be inserted and removed from the thread whenever desired. These Neodymium eyelets are great for suspension applications as well as clearing space and hanging items out of the way. The powerful magnetic pot is encased in mild steel in order to protect the magnet from chipping and cracking, which is common with neodymium magnets. The casing also directs the magnetic field around to the exposed side, or base, which as a result amplifies the magnetic holding force. This makes the permanent magnet more efficient as it emits a stronger than usual pull force, of 22kg, with only a small diameter of 25mm.

Pull Force:

The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet.
