Neodymium Ring Magnet - 22mm (OD) x 4.5mm (ID) x 10mm (H)
Neodymium Ring Magnet - 22mm (OD) x 4.5mm (ID) x 10mm (H)
Available in stock

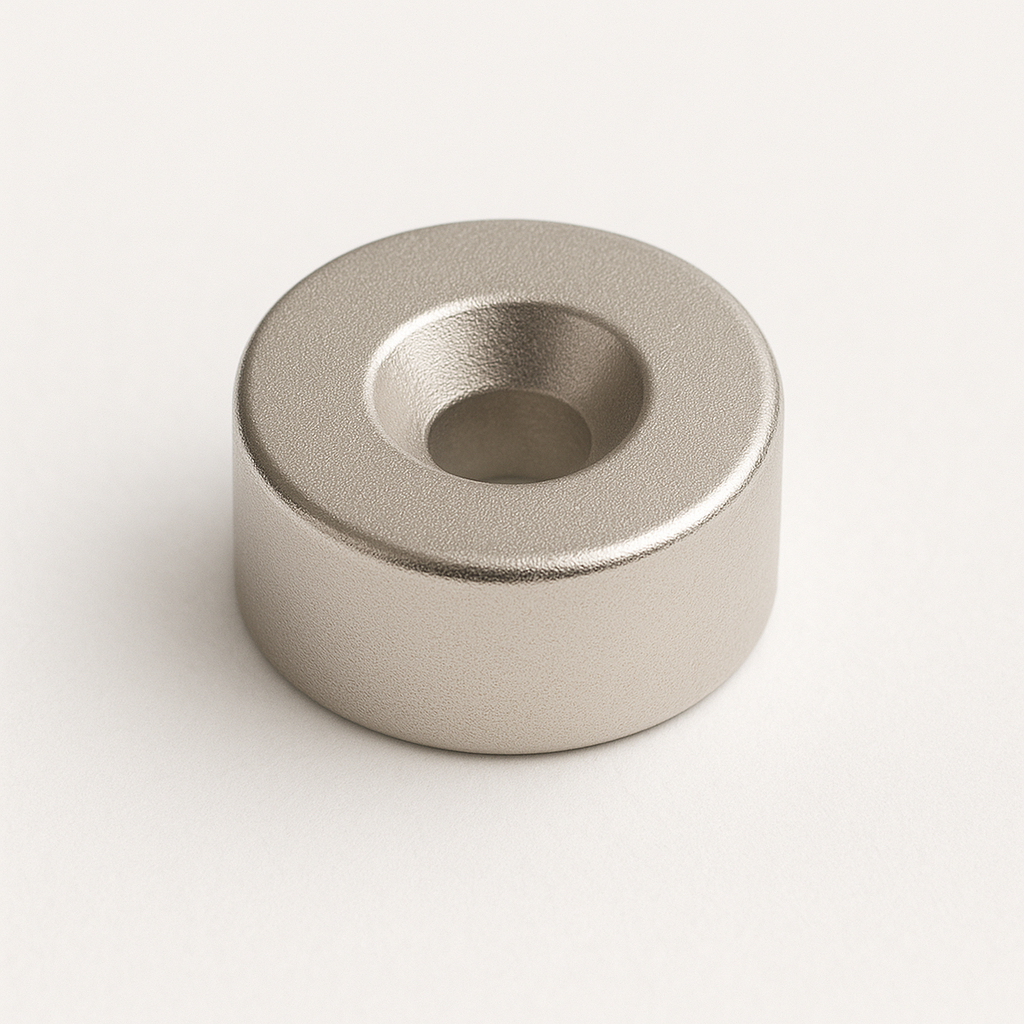

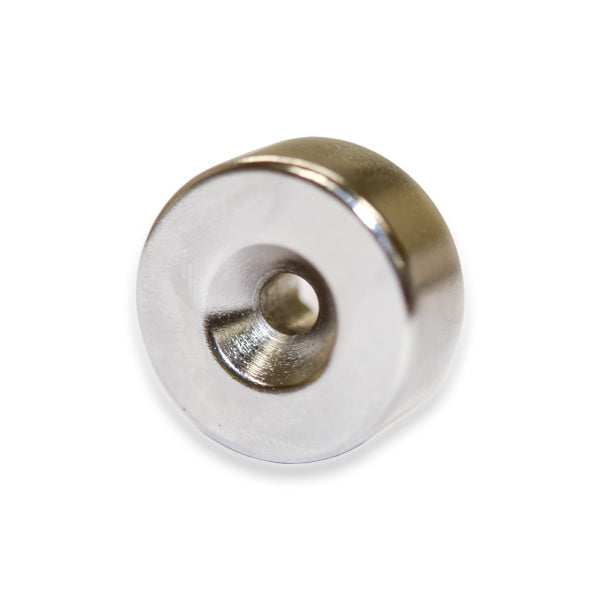

This neodymium countersunk ring magnet is engineered for maximum strength and reliability in fastening and mounting applications. Measuring 22mm outer diameter, 4.5mm inner diameter, and 10mm height, it features a countersunk hole designed to accommodate a screw head, allowing for easy and secure attachment to non-magnetic surfaces.
Constructed from high-performance rare earth neodymium (NdFeB), this ring magnet provides exceptional magnetic pull relative to its compact size. The triple-layer NiCuNi (Nickel-Copper-Nickel) coating enhances durability, ensuring resistance to corrosion and wear even in demanding environments.
Key Features:
Dimensions: 22mm (OD) x 4.5mm (ID) x 10mm (H)
Material: Neodymium (NdFeB) rare earth magnet
Finish: NiCuNi (Nickel-Copper-Nickel) plated for protection
Shape: Ring magnet with countersunk hole
Fixing Option: Compatible with flat head screws for firm mounting
Applications:
This countersunk neodymium ring magnet is ideal for:
Mounting, fixing, and fastening applications.
Furniture assembly and concealed fittings.
Secure closures for doors, panels, and cabinetry.
Industrial jigs, fixtures, and engineering solutions.
DIY, workshop, and home improvement projects.
Why Choose Countersunk Neodymium Magnets?
Unlike standard ring magnets, countersunk designs allow easy screw-in mounting, creating a permanent fastening solution without adhesives. Paired with the unmatched strength of neodymium rare earth magnets, this product delivers long-lasting, high-strength performance where reliable magnetic fastening is essential.
Pull Force Information
Pull Force Information
Pull force refers to the maximum holding strength of a magnet. Measured in kilograms, it represents the amount of weight a magnet can support when attached to 10mm thick mild steel, with full, flat, and direct surface-to-surface contact.
A magnet's pull force can be affected by several factors, including its orientation (horizontal vs. vertical) and the presence of any air gaps between the magnet and the surface it’s attached to.
