Male Thread Neodymium Pot Magnet - Diameter 10mm x 12mm
Male Thread Neodymium Pot Magnet - Diameter 10mm x 12mm
Available in stock
Magnetic Product Description:

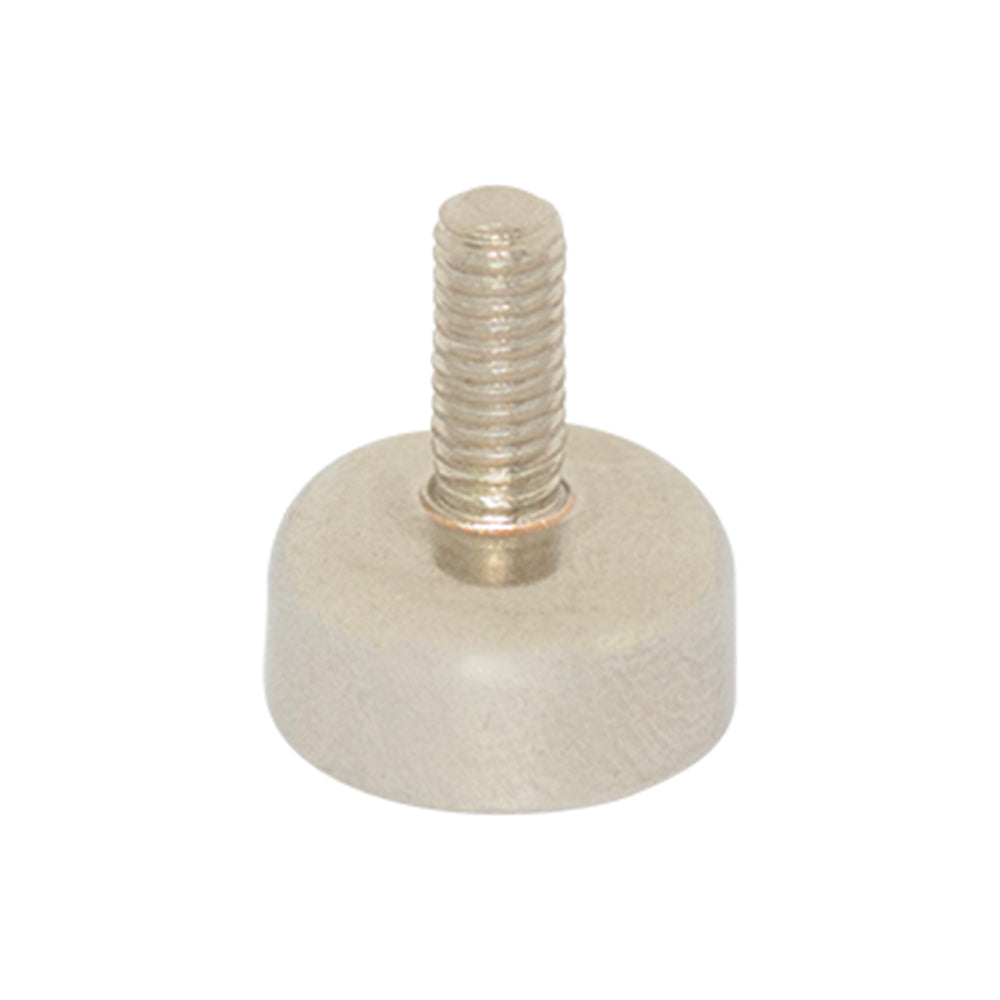

This Rare Earth male threaded pot magnet has a diameter of 10mm, a total height of 12mm and a magnet housing thickness of 5mm. It has a M3 thread with an external boss of 7mm. This male threaded magnet has a pull force of 2.2kg and a weight of 3 grams. It is identified by the part number NP1012MTM3.
Uses for our Rare Earth male thread pot magnets:
This Holding Pot magnet has a strong Neodymium magnet in a mild steel cap with a protruding male boss. The steel cap serves to protect the inner magnet from damage whilst also enhancing the magnetic field through the working face of the magnet. The field curves around the inside of the cap and is projected from the active face of the magnet whilst reducing the field on the reverse side. This creates an effectively single-sided magnet that is highly desirable in some applications. The male thread can be easily attached to a non-ferrous material using a nut and washer to secure the magnet in position. Likewise, the magnet can be integrated into a larger mechanical apparatus with a female threaded receptacle.
Pull Force Information
Pull Force Information
Pull force refers to the maximum holding strength of a magnet. Measured in kilograms, it represents the amount of weight a magnet can support when attached to 10mm thick mild steel, with full, flat, and direct surface-to-surface contact.
A magnet's pull force can be affected by several factors, including its orientation (horizontal vs. vertical) and the presence of any air gaps between the magnet and the surface it’s attached to.
