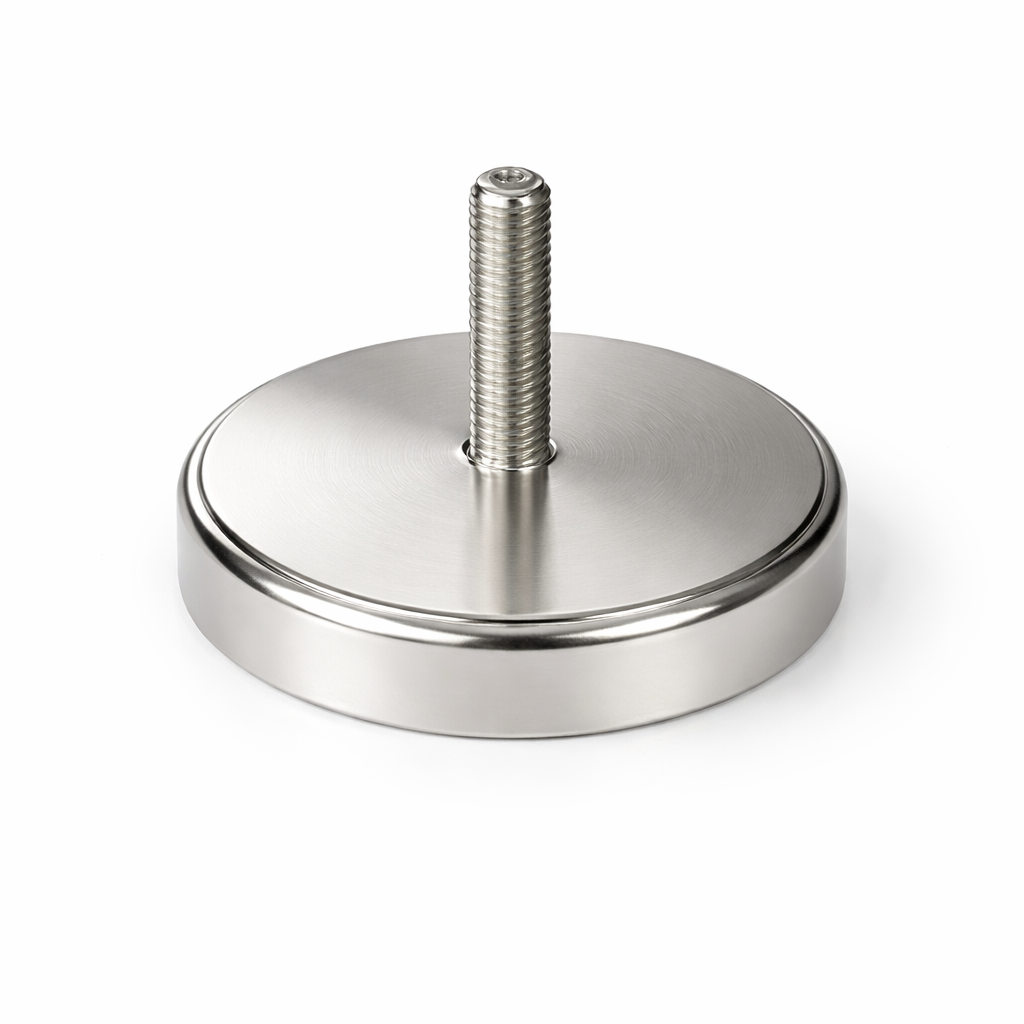

Neodymium Pot Magnet with M8 Male Thread - D60mm x 40mm (H) | 25mm External Boss
Neodymium Pot Magnet with M8 Male Thread - D60mm x 40mm (H) | 25mm External Boss
Available in stock
Built for extreme holding power, this Neodymium Pot Magnet with M8 Male Thread is one of the strongest options in its class, ideal for heavy-duty industrial and commercial applications. With a 60mm diameter and 40mm total height, this large-format pot magnet is designed to deliver maximum performance where a secure, high-load magnetic hold is essential.
At its core sits a D48mm x 3mm neodymium magnet, encased within a robust steel housing. This casing not only protects the magnet from damage but also focuses the magnetic field onto the working face, significantly increasing holding efficiency. The result is an impressive pull force of up to 113kg, making it suitable for the most demanding mounting, clamping, and securing tasks.
The integrated M8 male thread with a 25mm external boss (thread length) allows for quick and secure installation into threaded fixtures, brackets, or assemblies, providing a reliable and reusable fastening solution across a wide range of applications.
Key Features
Diameter: 60mm
Total Height: 40mm
Magnet Housing Thickness: 15mm
Internal Magnet Size: 48mm (D) x 3mm (H)
Thread Type: M8 Male Thread
External Boss (Thread Length): 25mm
Pull Force: Approx. 113kg
Weight: 254g
Applications
Heavy-duty industrial mounting and clamping
Engineering, fabrication, and workshop environments
Automotive and mechanical assemblies
Structural support, fixtures, and large signage installations
Securing or suspending heavy equipment and components
Why Choose a Male Thread Pot Magnet?
Male threaded pot magnets provide a strong, secure, and easy-to-install mounting solution, allowing direct integration into threaded holes or compatible fittings. The steel pot design enhances durability while amplifying and directing the magnetic force to the contact surface for superior holding performance.
Important Notes
Pull force is measured under ideal conditions (direct contact with thick, flat mild steel). Actual performance may vary depending on surface conditions, coatings, and alignment.
For vertical or overhead applications, effective holding force will be reduced due to gravity and surface friction.
Neodymium magnets are brittle and should be handled carefully to avoid chipping or cracking.
Delivering maximum strength, durability, and reliability, this 60mm M8 male thread pot magnet is the ultimate solution for high-load magnetic applications where performance cannot be compromised.
Pull Force Information
Pull Force Information
Pull force refers to the maximum holding strength of a magnet. Measured in kilograms, it represents the amount of weight a magnet can support when attached to 10mm thick mild steel, with full, flat, and direct surface-to-surface contact.
A magnet's pull force can be affected by several factors, including its orientation (horizontal vs. vertical) and the presence of any air gaps between the magnet and the surface it’s attached to.
