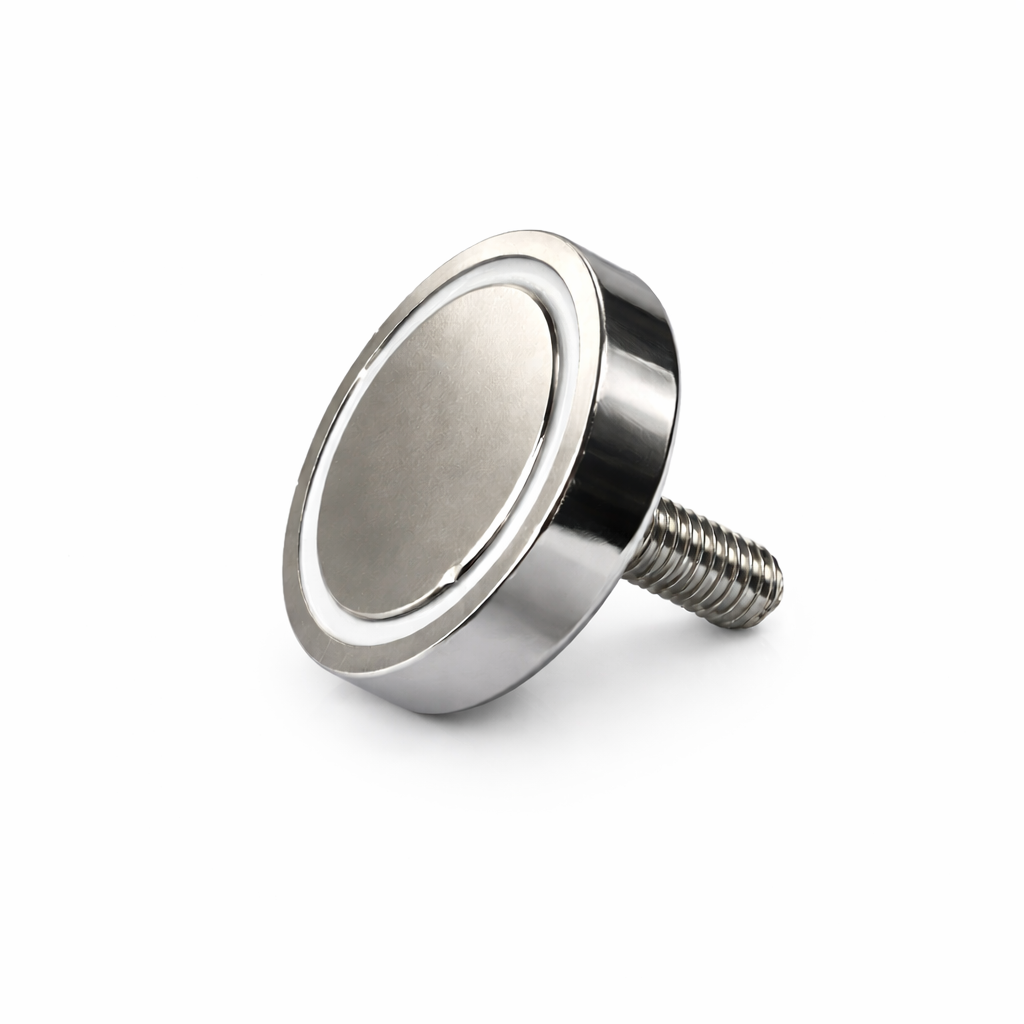

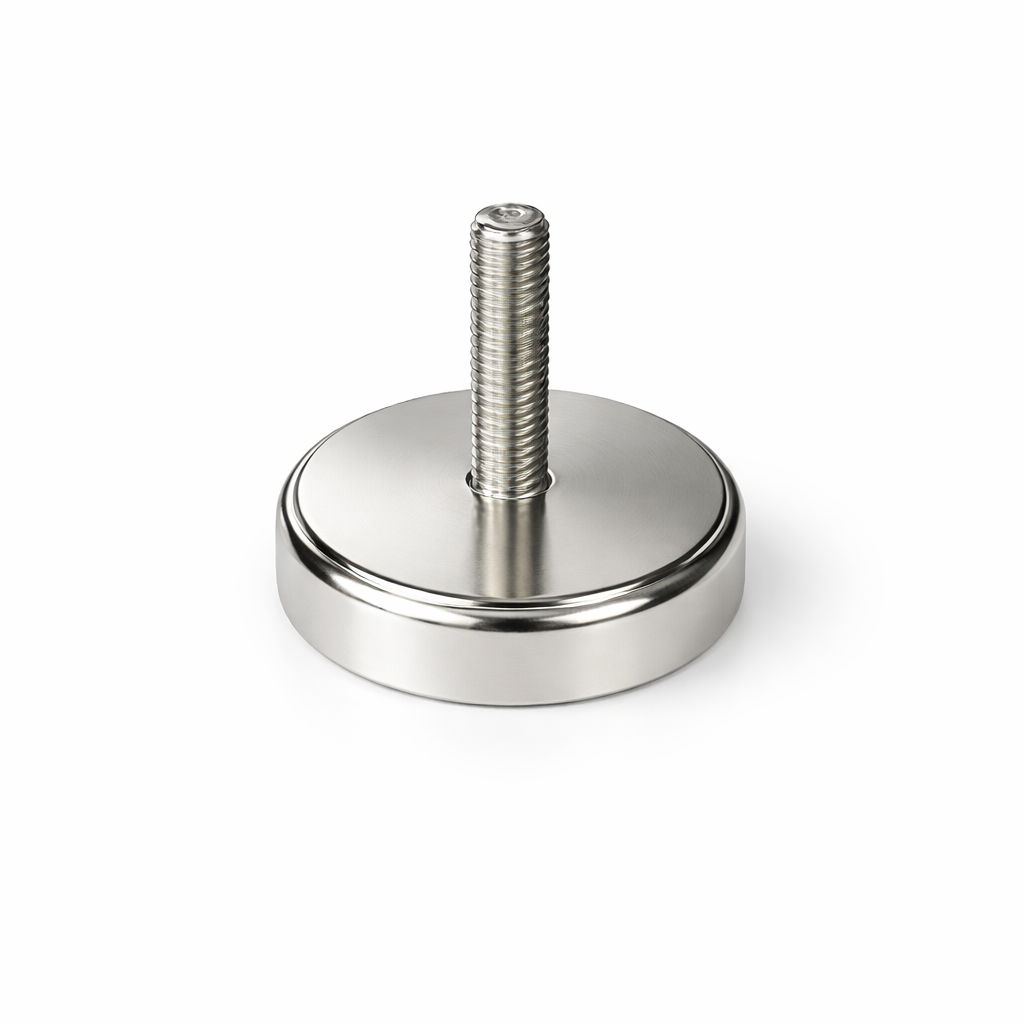

Neodymium Pot Magnet with M8 Male Thread - D48mm x 35.5mm (H) | 25mm External Boss
Neodymium Pot Magnet with M8 Male Thread - D48mm x 35.5mm (H) | 25mm External Boss
Available in stock
For applications that demand serious holding power, this Neodymium Pot Magnet with M8 Male Thread delivers exceptional performance in a robust, industrial-grade design. With a 48mm diameter and 35.5mm total height, this heavy-duty magnet is built to handle high-load mounting, clamping, and securing tasks with ease.
Internal magnet size within its metal casing is D38mm x 3mm.
At its core, a powerful neodymium magnet is encased within a durable steel housing, which protects against damage while concentrating the magnetic field on the working surface for maximum efficiency. The result is an impressive pull force of up to 81kg, making this magnet ideal for demanding industrial and commercial environments.
The integrated M8 male thread with a 25mm external boss (thread length) allows for quick and secure installation into threaded components, brackets, or fixtures—providing a reliable and reusable fastening solution.
Key Features
Diameter: 48mm
Total Height: 35.5mm
Magnet Housing Thickness: 11.5mm
Thread Type: M8 Male Thread
External Boss (Thread Length): 25mm
Pull Force: Approx. 81kg
Weight: 135g
Applications
Heavy-duty industrial mounting and clamping.
Engineering, fabrication, and workshop use.
Automotive and mechanical assemblies.
Signage, fixtures, and structural support applications.
Securing or suspending heavier items with confidence.
Why Choose a Male Thread Pot Magnet?
Male threaded pot magnets offer a fast, secure, and versatile mounting solution, allowing direct installation into compatible threaded holes or fittings. The steel casing enhances durability while amplifying and directing magnetic force to deliver superior holding performance.
Important Notes
Pull force is measured under ideal conditions (direct contact with thick, flat mild steel). Actual performance may vary depending on surface conditions, coatings, and alignment.
For vertical or overhead applications, effective holding force will be reduced due to gravity and surface friction.
Neodymium magnets are brittle and should be handled carefully to avoid chipping or cracking.
Pull Force Information
Pull Force Information
Pull force refers to the maximum holding strength of a magnet. Measured in kilograms, it represents the amount of weight a magnet can support when attached to 10mm thick mild steel, with full, flat, and direct surface-to-surface contact.
A magnet's pull force can be affected by several factors, including its orientation (horizontal vs. vertical) and the presence of any air gaps between the magnet and the surface it’s attached to.
