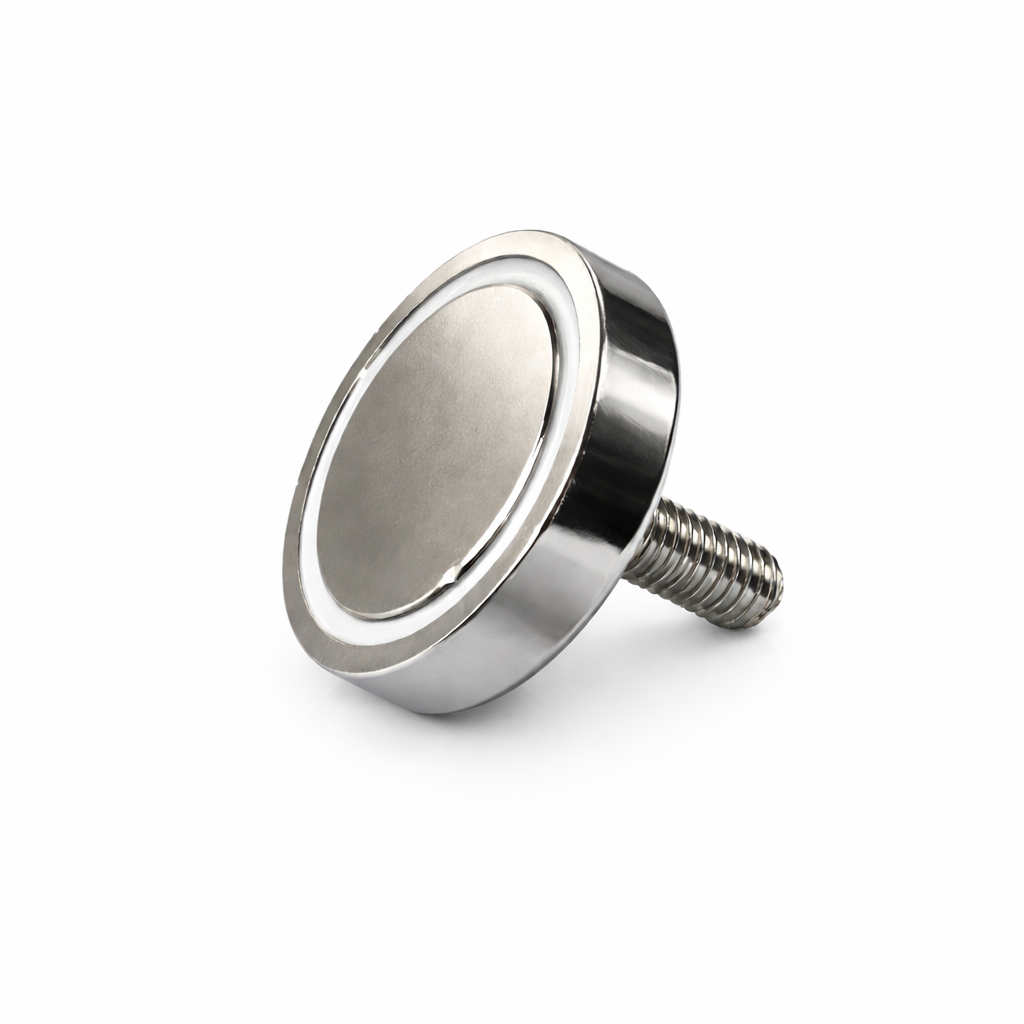

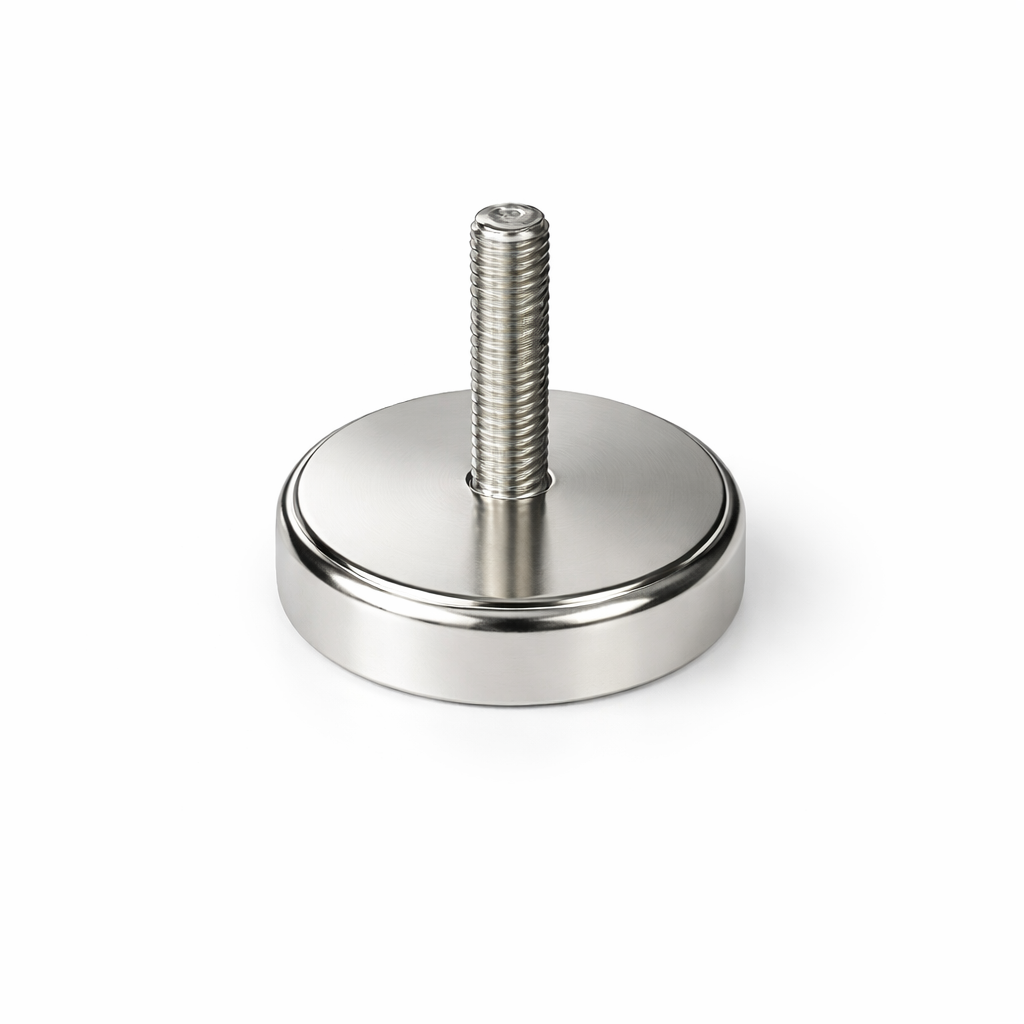

Neodymium Pot Magnet with M8 Male Thread - D42mm x 34mm (H) | 25mm External Boss
Neodymium Pot Magnet with M8 Male Thread - D42mm x 34mm (H) | 25mm External Boss
Available in stock
Engineered for maximum holding power, this Neodymium Pot Magnet with M8 Male Thread is a high-performance solution for heavy-duty mounting and industrial applications. With a 42mm diameter and 34mm total height, this compact yet powerful magnet delivers an impressive pull force of up to 68kg, making it ideal for applications where strength and reliability are essential.
Internal magnet size within its metal casing is D32mm x 3.4mm.
This pot magnet features a male M8 thread with a 25mm external boss, allowing it to be easily screwed into compatible female threads for fast, secure installation. The internal neodymium magnet is encased within a mild steel housing, which not only protects against chipping and wear but also enhances magnetic performance by concentrating the magnetic field on the working surface.
Despite its relatively small footprint, this magnet provides exceptional holding strength, making it a popular choice for professional, industrial, and workshop environments.
Key Features
Diameter: 42mm
Total Height: 34mm
Base Height: 9mm
Thread Type: M8 Male Thread
External Boss (Thread Length): 25mm
Pull Force: Approx. 68kg
Material: Neodymium magnet with mild steel casing
Applications
Heavy-duty mounting and clamping.
Industrial and engineering assemblies.
Automotive and fabrication environments.
Signage, fixtures, and display systems.
Hanging or securing heavy items with confidence.
Why Choose a Male Thread Pot Magnet?
Male threaded pot magnets provide a simple, secure, and reusable fastening method, allowing direct installation into threaded holes or fittings. The steel pot design not only protects the magnet but also amplifies and directs the magnetic force, ensuring maximum holding efficiency.
Important Notes
Pull force is measured under ideal conditions (direct contact with thick, flat mild steel). Actual holding strength may vary depending on surface conditions, coatings, and alignment.
For vertical or overhead applications, effective holding force will be reduced due to gravity and surface friction.
Neodymium magnets are brittle and should be handled with care to avoid chipping or cracking.
Pull Force Information
Pull Force Information
Pull force refers to the maximum holding strength of a magnet. Measured in kilograms, it represents the amount of weight a magnet can support when attached to 10mm thick mild steel, with full, flat, and direct surface-to-surface contact.
A magnet's pull force can be affected by several factors, including its orientation (horizontal vs. vertical) and the presence of any air gaps between the magnet and the surface it’s attached to.
