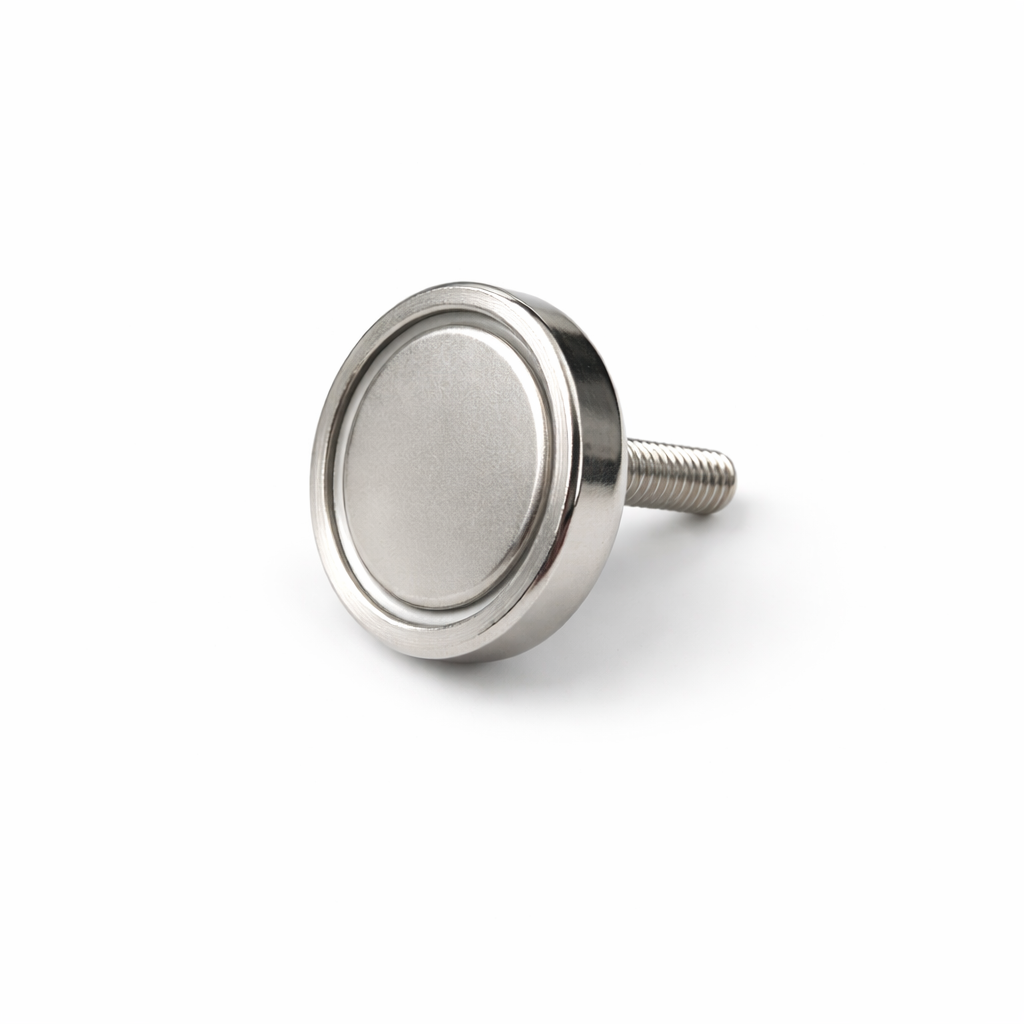

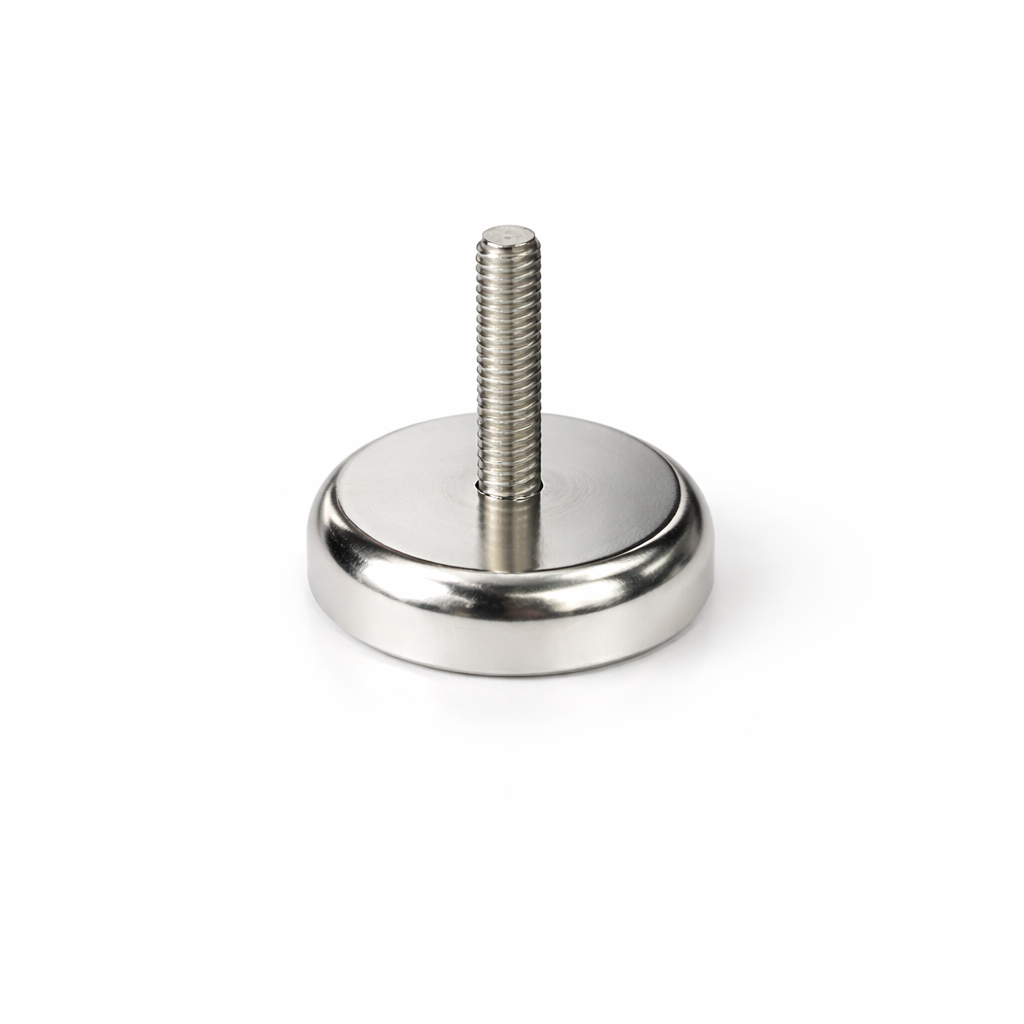

Neodymium Pot Magnet with M6 Male Thread - D36mm x 33mm (H) | 25mm External Boss
Neodymium Pot Magnet with M6 Male Thread - D36mm x 33mm (H) | 25mm External Boss
Available in stock
Designed for demanding applications, this Neodymium Pot Magnet with M6 Male Thread delivers exceptional holding strength in a robust, compact form. With a 36mm diameter and 33mm total height, this heavy-duty magnet is ideal for secure mounting, clamping, and positioning tasks across industrial and commercial environments.
Internal magnet size is D27mm x 4mm.
Encased in a durable steel housing, the internal neodymium magnet is protected while the magnetic field is concentrated on the working surface, maximising efficiency and holding power. With a pull force of up to 41kg, this magnet provides reliable, high-strength performance for applications where a secure hold is critical.
The integrated M6 male thread with a 25mm external boss (thread length) ensures easy installation into threaded components or fixtures, offering a versatile and dependable mounting solution.
Key Features
Diameter: 36mm
Total Height: 33mm
Magnet Housing Thickness: 8mm
Thread Type: M6 Male Thread
External Boss (Thread Length): 25mm
Pull Force: Approx. 41kg
Weight: 62g
Applications
Industrial mounting and heavy-duty holding.
Workshop, fabrication, and engineering setups.
Signage, displays, and fixtures.
Automotive and mechanical assemblies.
Hanging or securing heavier items with confidence.
Why Choose a Male Thread Pot Magnet?
Male threaded pot magnets provide a fast, secure, and reusable fixing solution, allowing direct installation into threaded holes or compatible fittings. The steel pot design not only protects the magnet but also amplifies and directs the magnetic force to the contact surface for maximum performance.
Important Notes
Pull force is tested under ideal conditions (direct contact with thick, flat mild steel). Actual performance may vary depending on surface conditions, coatings, and alignment.
For vertical or overhead use, the effective holding force will be reduced due to gravity and surface friction.
Neodymium magnets are brittle and should be handled carefully to avoid chipping or cracking.
Offering increased holding strength and reliable performance, this 36mm diameter M6 male thread pot magnet is a powerful solution for professional and industrial magnetic applications.
Pull Force Information
Pull Force Information
Pull force refers to the maximum holding strength of a magnet. Measured in kilograms, it represents the amount of weight a magnet can support when attached to 10mm thick mild steel, with full, flat, and direct surface-to-surface contact.
A magnet's pull force can be affected by several factors, including its orientation (horizontal vs. vertical) and the presence of any air gaps between the magnet and the surface it’s attached to.
