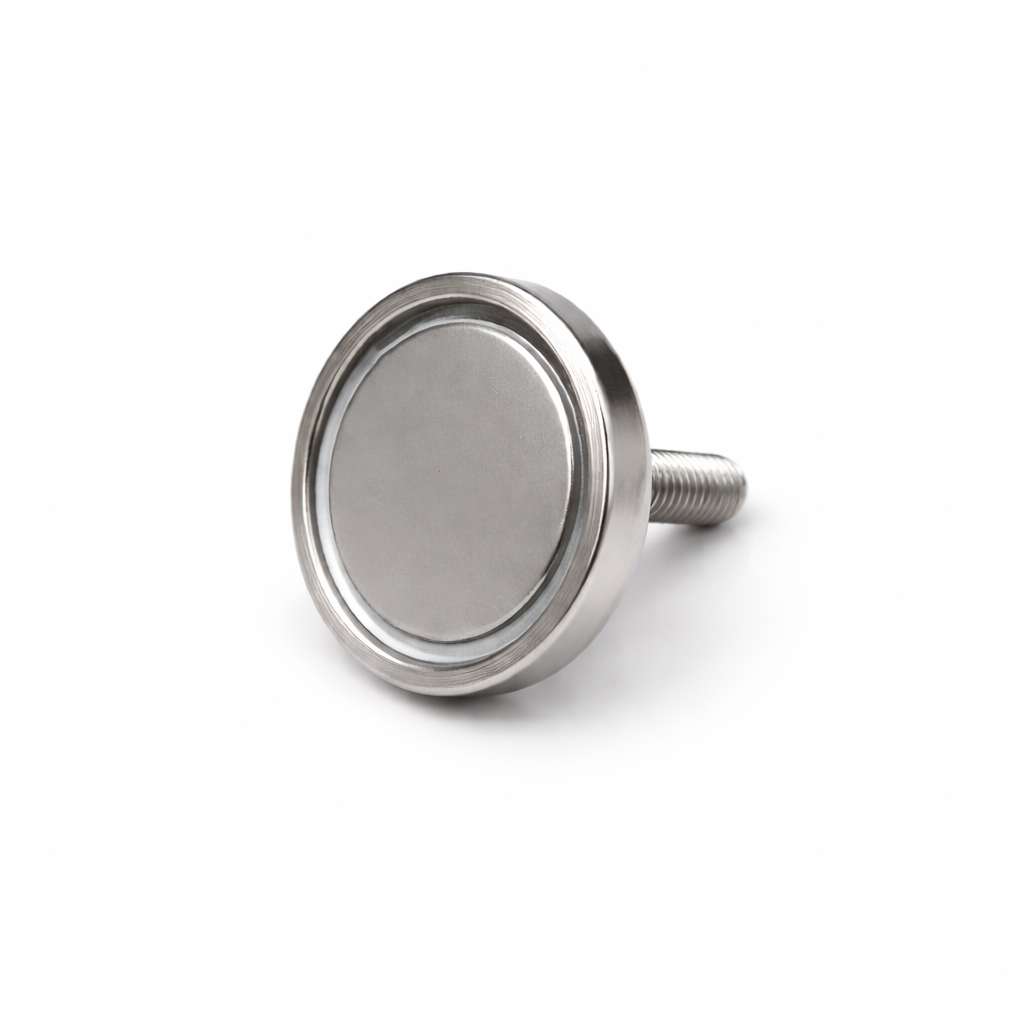

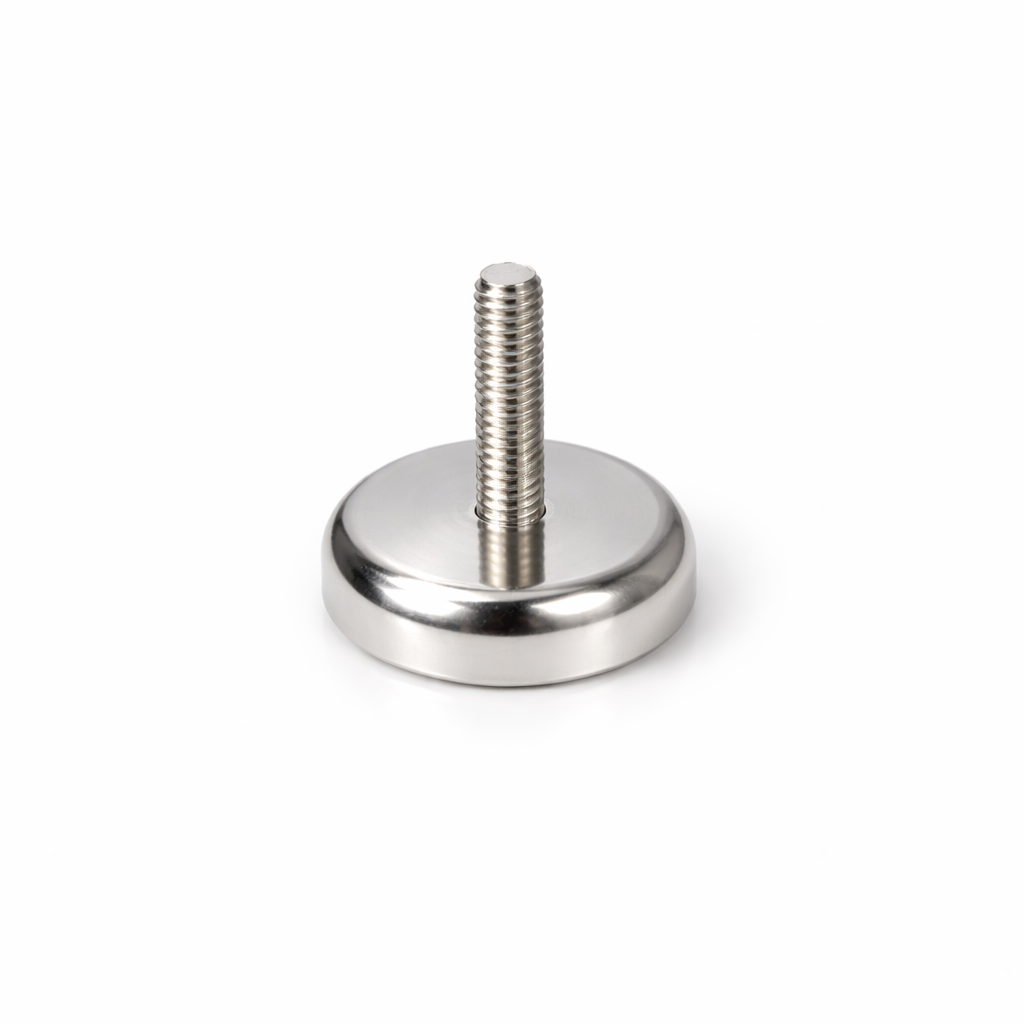

Neodymium Pot Magnet with M6 Male Thread - D32mm x 33mm (H) | 25mm External Boss
Neodymium Pot Magnet with M6 Male Thread - D32mm x 33mm (H) | 25mm External Boss
Available in stock
Built for strength and versatility, this Neodymium Pot Magnet with M6 Male Thread delivers powerful holding performance in a compact, industrial-grade design. Featuring a 32mm diameter and 33mm total height, this magnet is engineered for secure mounting, heavy-duty applications, and reliable long-term use.
Encased in a durable steel housing, the internal D24mm x 3.9mm neodymium magnet is protected while its magnetic field is concentrated on the working face, maximising holding strength and efficiency. With an impressive pull force of up to 34kg, this magnet is ideal for demanding applications where a strong, single-sided magnetic hold is required.
The integrated M6 male thread with a 25mm external boss (thread length) allows for quick and secure attachment to a wide range of fixtures, brackets, and assemblies, making installation simple and adaptable.
Key FeaturesDiameter: 32mm
Total Height: 33mm
Magnet Housing Thickness: 8mm
Thread Type: M6 Male Thread
External Boss (Thread Length): 25mm
Internal Magnet Size: 24mm (D) x 3.9mm (H)
Pull Force: Approx. 34kg
Weight: 50g

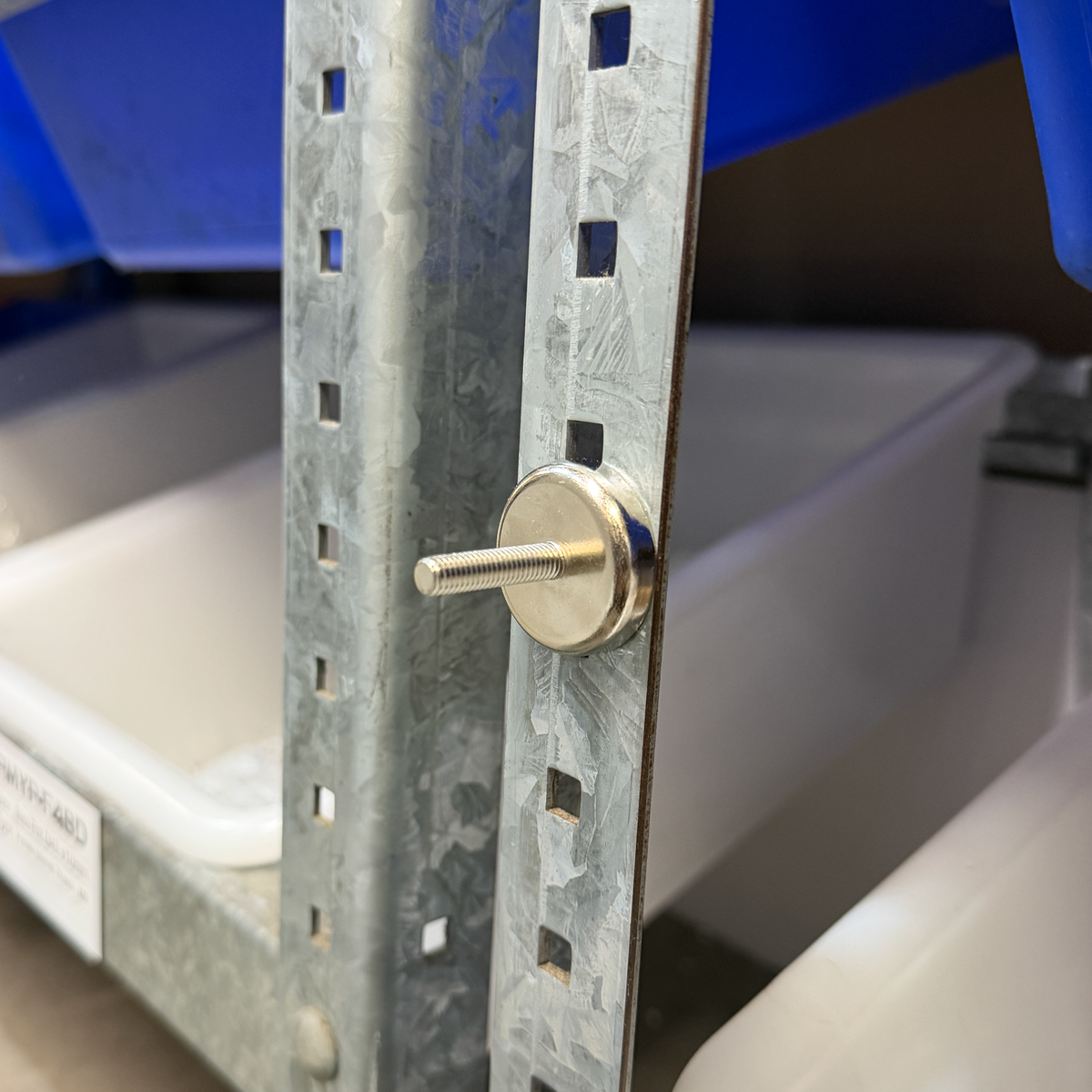

Applications:Mounting and securing equipment in industrial or workshop environments.
Signage, displays, and point-of-sale fixtures.
Automotive, fabrication, and engineering setups.
Hanging, clamping, or positioning heavy items with confidence.
Why Choose a Male Thread Pot Magnet?Male threaded pot magnets offer a simple and secure fastening solution, allowing you to attach the magnet directly into pre-threaded holes or with compatible fittings. The steel casing not only protects the magnet but also enhances magnetic performance by directing the strength toward the contact surface.
Important Notes:Pull force is tested under ideal conditions (direct contact with thick, flat mild steel). Real-world performance may vary depending on surface conditions, coatings, and alignment.
For vertical or overhead applications, the effective holding force will be reduced due to gravity and surface friction.
Neodymium magnets are brittle and should be handled carefully to avoid chipping or cracking.
Combining high strength, durability, and easy installation, this M6 male thread pot magnet is a reliable solution for professional and industrial magnetic mounting applications.
Pull Force Information
Pull Force Information
Pull force refers to the maximum holding strength of a magnet. Measured in kilograms, it represents the amount of weight a magnet can support when attached to 10mm thick mild steel, with full, flat, and direct surface-to-surface contact.
A magnet's pull force can be affected by several factors, including its orientation (horizontal vs. vertical) and the presence of any air gaps between the magnet and the surface it’s attached to.
