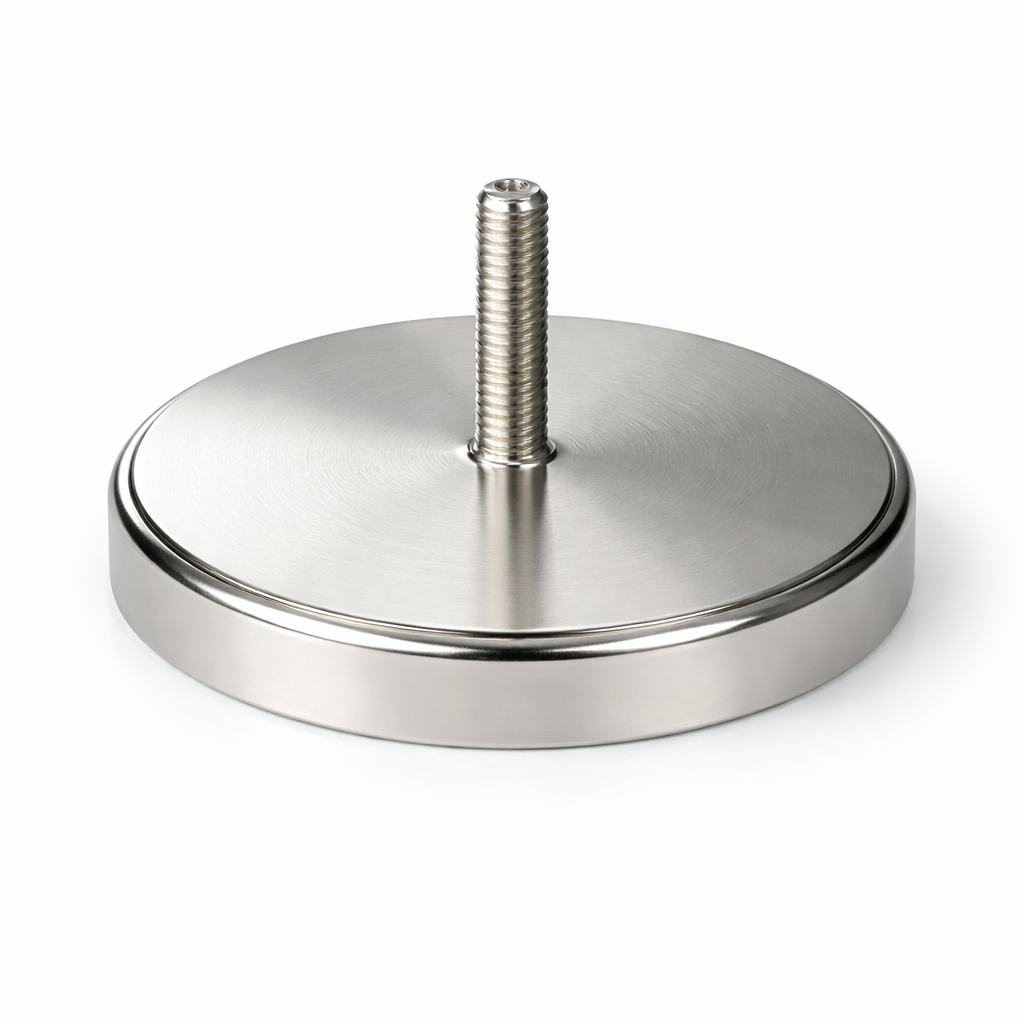

Neodymium Pot Magnet with M10 Male Thread - D75mm x 43mm (H) | 25mm External Boss
Neodymium Pot Magnet with M10 Male Thread - D75mm x 43mm (H) | 25mm External Boss
Available in stock
For the most demanding heavy-duty applications, this Neodymium Pot Magnet with M10 Male Thread delivers exceptional holding strength and durability. With a large 75mm diameter and 43mm total height, this high-performance magnet is engineered for industrial environments where maximum magnetic force and secure mounting are critical.
At its core is a powerful D60mm x 4mm neodymium magnet, encased within a robust steel housing. This protective casing not only shields the magnet from impact and wear but also concentrates the magnetic field on the working surface, significantly enhancing holding performance. The result is an outstanding pull force of up to 164kg, making this one of the strongest options available for heavy-duty magnetic applications.
The integrated M10 male thread with a 25mm external boss (thread length) allows for fast, secure installation into threaded components, fixtures, or brackets. This makes it an ideal solution for applications requiring a reliable, reusable, and high-strength magnetic fixing point.
Key Features
Diameter: 75mm
Total Height: 43mm
Magnet Housing Thickness: 15mm
Internal Magnet Size: 60mm (D) x 4mm (H)
Thread Type: M10 Male Thread
External Boss (Thread Length): 25mm
Pull Force: Approx. 164kg
Weight: 550g
Applications
Heavy-duty industrial mounting and clamping.
Engineering, fabrication, and manufacturing environments.
Automotive and mechanical assemblies.
Structural installations and large-scale fixtures.
Securing or suspending heavy equipment and components.
Why Choose a Male Thread Pot Magnet?
Male threaded pot magnets offer a secure and versatile fastening solution, allowing direct installation into threaded holes or compatible fittings. The steel pot design enhances durability while amplifying and directing magnetic force to deliver superior holding strength exactly where it’s needed.
Important Notes
Pull force is measured under ideal conditions (direct contact with thick, flat mild steel). Actual performance may vary depending on surface conditions, coatings, and alignment.
For vertical or overhead applications, effective holding force will be reduced due to gravity and surface friction.
Neodymium magnets are brittle and should be handled carefully to avoid chipping or cracking.
Pull Force Information
Pull Force Information
Pull force refers to the maximum holding strength of a magnet. Measured in kilograms, it represents the amount of weight a magnet can support when attached to 10mm thick mild steel, with full, flat, and direct surface-to-surface contact.
A magnet's pull force can be affected by several factors, including its orientation (horizontal vs. vertical) and the presence of any air gaps between the magnet and the surface it’s attached to.
