Female Thread Neodymium Pot Magnet - Diameter 12mm x 13mm
Female Thread Neodymium Pot Magnet - Diameter 12mm x 13mm
Available in stock
Magnetic Product Description:

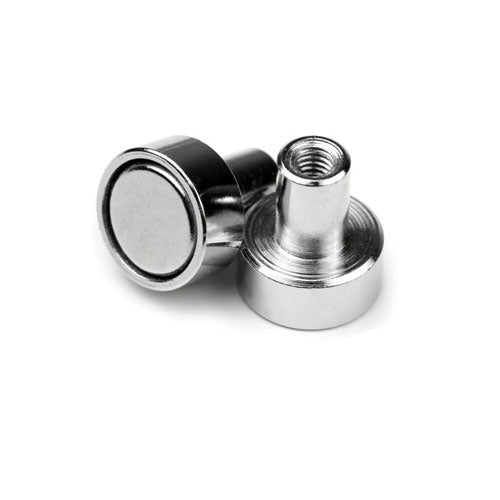

This rare earth female threaded pot magnet has a diameter of 12mm, a total height of 13mm and a magnet housing thickness of 5mm. It has a 3mm female thread. This female threaded magnet has a pull force of 3.2kg and a weight of 5 grams. It is identified by the magnet part number NP1205FT.
Uses for our rare earth female thread pot magnets:
This Female Threaded Holding Pot Magnet is ideal for use with bolts, hooks and eyelets with a corresponding male thread. The Neodymium disc magnet is protected by a mild steel cap with a female threaded stem. The steel augments the holding force of the magnet, deflecting the magnetic field so that it is projected through the single working face of the magnet. This creates an essentially single sided magnet with minimal stray field produced out the reverse side of the magnet. These magnets are incredibly versatile. Used with an eyelet or hook they can be tied to a rope for retrieval purposes and are ideal for use in tight spaces in and around machinery. They are also a great solution for keeping electrical and computer cabling safely secured and under control, whether it be in the warehouse, server room, or even the underside of a hospital bed.
Pull Force Information
Pull Force Information
Pull force refers to the maximum holding strength of a magnet. Measured in kilograms, it represents the amount of weight a magnet can support when attached to 10mm thick mild steel, with full, flat, and direct surface-to-surface contact.
A magnet's pull force can be affected by several factors, including its orientation (horizontal vs. vertical) and the presence of any air gaps between the magnet and the surface it’s attached to.
