Female Thread Neodymium Pot Magnet - Diameter 10mm x 12mm
Female Thread Neodymium Pot Magnet - Diameter 10mm x 12mm
Available in stock
Magnetic Product Description:
This rare earth female threaded pot magnet has a diameter of 10mm, a total height of 12mm and a magnet housing thickness of 5mm. It has a 3mm female thread. This female threaded pot magnet has a pull force of 2.2kg and a weight of 4 grams. It is identified by the magnet part number NP1005FT.
Uses for our rare earth female thread pot magnets:

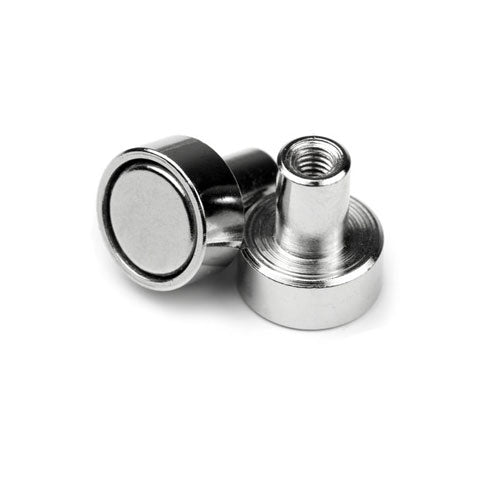

These Female Threaded Holding Pot Magnets consist of a Neodymium disc magnet housed inside a mild steel cup with a protruding female threaded stem. The steel cap protects the brittle Neodymium magnet within from unwanted damage such as chipping and cracking. This protective case also magnifies the holding power of the magnet by deflecting the magnetic field produced through the reverse side of the magnet so both poles are presented through the active face of the magnet. These pots are commonly used in conjunction with standard hardware such as bolts, hooks and eyelets as a non-destructive solution for attaching and suspending objects from ferrous surfaces.
Pull Force Information
Pull Force Information
Pull force refers to the maximum holding strength of a magnet. Measured in kilograms, it represents the amount of weight a magnet can support when attached to 10mm thick mild steel, with full, flat, and direct surface-to-surface contact.
A magnet's pull force can be affected by several factors, including its orientation (horizontal vs. vertical) and the presence of any air gaps between the magnet and the surface it’s attached to.
