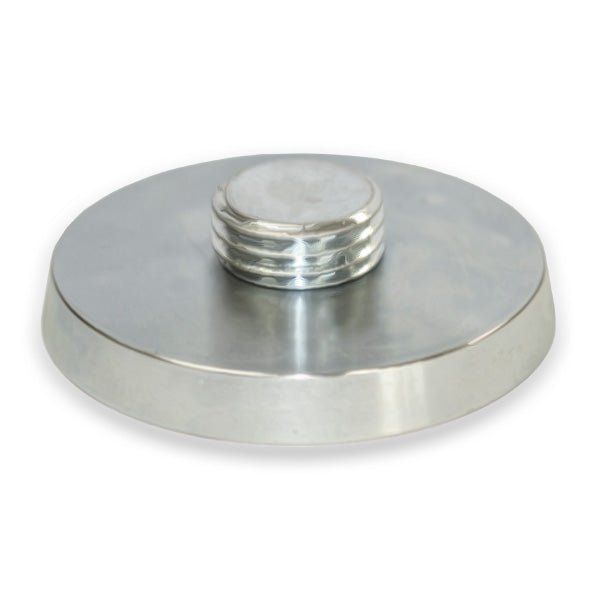

Neodymium Magnetic Fixing Plate – D74mm | M30 Thread

Magnetic Product Description:

The Neodymium Magnetic Fixing Plate D74mm with M30 Thread is specifically designed for securely attaching sockets to steel formwork. Boasting a 74mm diameter and a remarkable pull force of 120kg, this product, identified by AMF Magnetics Part Number MFP30, is a must-have for any construction or industrial application.

Uses for our Neodymium Magnetic Plates:

In recent times, the concrete sections used in large scale construction projects are made using steel mouldings and formwork which are reusable and permit much larger spans to be fabricated than traditional timber formwork. Timber and Plywood formwork was mostly built on-site by skilled Formworkers and Carpenters. Structures made with steel formwork can be prefabricated off-site in an all-weather environment where production and quality can be closely monitored and controlled.

Magnetic Fixing Plates can bond to the steel mouldings and hold important inclusions inside the slab in the required position while the casting takes place. This can include piping, reinforcement bars, hoses or lifting sockets that allow cranes to position the concrete sections correctly into place on-site.

The holding device contains powerful Rare Earth magnets that keep the plate in the required position during the casting process. Lightly oiling the casing will ensure its easy removal and make it reusable. Various sizes are available to suit a range of concrete panels
