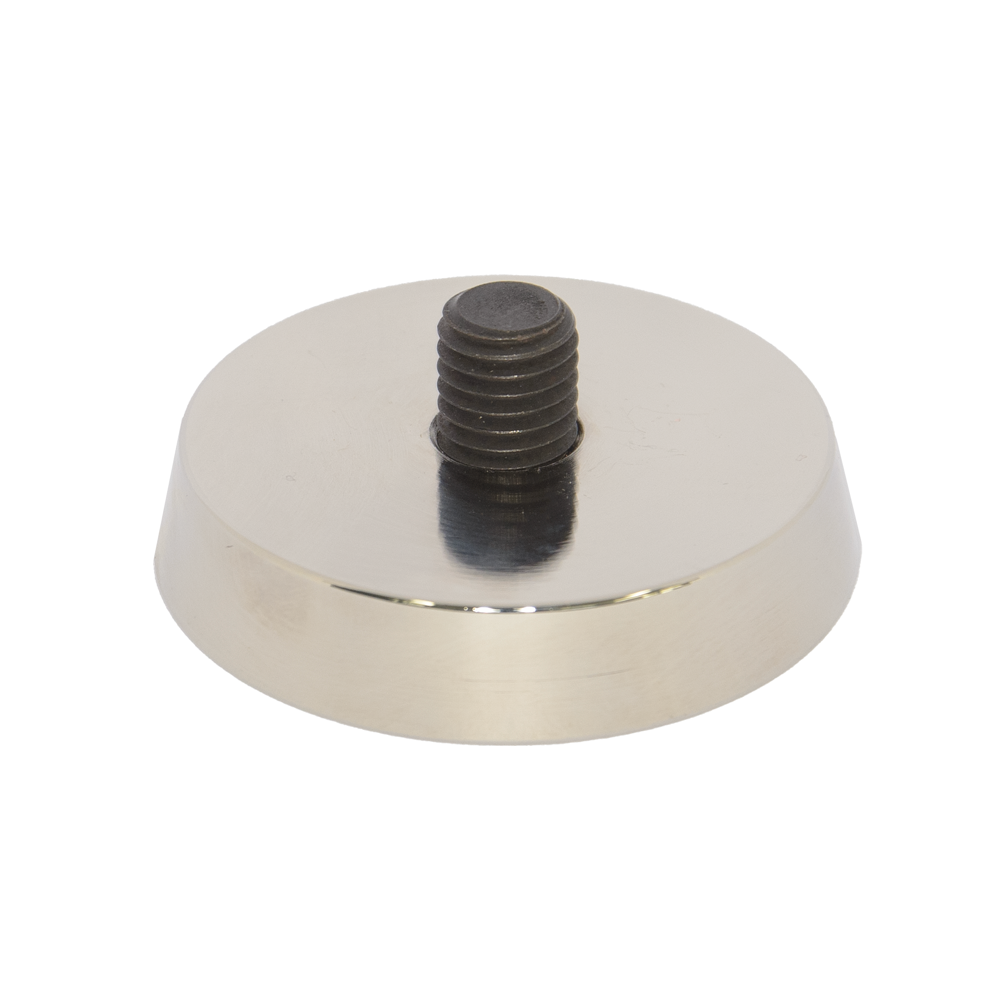

Neodymium Magnetic Fixing Plate – D50mm | M8 Thread x H25mm
Neodymium Magnetic Fixing Plate – D50mm | M8 Thread x H25mm
Available in stock
Magnetic Product Description:
This Neodymium Magnetic Fixing Plate, with a 50mm diameter and 45kg pull force, is perfect for securing sockets onto steel formwork. Known as the AMF Part Number MFP8, it's equipped with an M8 removable thread for easy attachment.
Uses for our Neodymium Magnetic Plates:
These Neodymium Magnetic Fixing Plates are perfect for industrial uses, thanks to their superb strength and generous surface area. Use them to magnetically secure lifting sockets to steel formwork. With its mighty permanent pull-force, this Rare Earth Magnetic Fixing Plate, featuring a diameter of 50mm and a thickness of 10mm, along with an M8 male thread, offers a whopping pull force of 45kg, reliably anchoring your product in place.
The Neodymium Magnetic Fixing Plate is essential for attaching lifting sockets to steel formwork during the prefabricated concrete panel pouring process. This allows for effortless and secure lifting, transportation, and positioning of precast materials on the construction site. The lightly oiled contact area ensures easy removal and reusability of the plate.
Pull Force Information
Pull Force Information
Pull force refers to the maximum holding strength of a magnet. Measured in kilograms, it represents the amount of weight a magnet can support when attached to 10mm thick mild steel, with full, flat, and direct surface-to-surface contact.
A magnet's pull force can be affected by several factors, including its orientation (horizontal vs. vertical) and the presence of any air gaps between the magnet and the surface it’s attached to.
