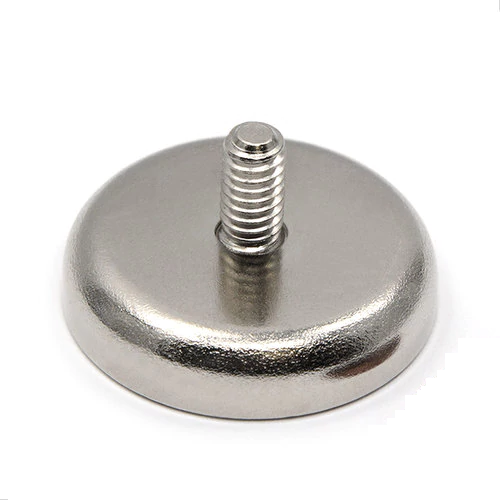

Neodymium Pot Magnet – D32mm with Male Thread (M6*15mm)
Neodymium Pot Magnet – D32mm with Male Thread (M6*15mm)
Available in stock
Magnetic Product Description:
This rare earth male threaded pot magnet has a diameter of 32mm, a total height of 23mm and a magnet housing thickness of 8mm. It has a M6 thread with an external boss of 15mm. This male threaded magnet has a pull force of 34kg and a weight of 45 grams. It is identified by the magnet part number NPMT3208M6h15.
Uses for our Rare Earth male thread pot magnets:
This Male Threaded Pot Magnet has a mild steel housing with a protruding male boss making it ideal for attaching with a washer and nut. The metal cup protects the magnet within from being damaged during use and also enhances the magnetic power of the active face of the magnet by bending both poles of the magnetic field to project through one face. This powerful pot magnet is a popular size, and the M6 thread allows it to be used in a myriad of applications, whether they are attached using a nut or threaded into a bespoke mechanical apparatus.
Pull Force Information
Pull Force Information
Pull force refers to the maximum holding strength of a magnet. Measured in kilograms, it represents the amount of weight a magnet can support when attached to 10mm thick mild steel, with full, flat, and direct surface-to-surface contact.
A magnet's pull force can be affected by several factors, including its orientation (horizontal vs. vertical) and the presence of any air gaps between the magnet and the surface it’s attached to.
