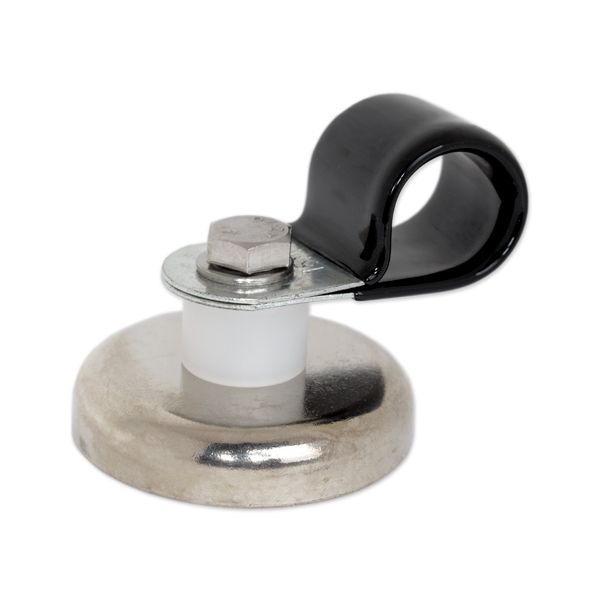

Neodymium D36mm Hose Clamp P-Clip Magnet | Neoprene | ID16mm dia. | Pull Force 41kg

The Neodymium D36mm Hose Clamp P-Clip Magnet with Neoprene Lining is a powerful, removable magnetic mounting solution designed for securing and routing hoses, tubing, cables, wiring and similar cylindrical components against compatible ferromagnetic steel surfaces. It combines a 36mm diameter neodymium magnetic base with a neoprene-lined P-Clip featuring a nominal 16mm internal diameter, providing a practical alternative to permanently drilled or welded mounting points.

With a specified 41kg pull force under suitable direct-pull test conditions, this magnetic P-Clip provides strong magnetic attachment while remaining removable and repositionable. The neoprene lining helps cushion the supported hose, cable or tube and reduce direct contact with the metal clamp.

Also known as a magnetic hose clamp, magnetic P-Clip, magnetic cable clamp, neodymium pipe clamp or magnetic hose holder, this assembly is suitable for industrial equipment, machinery, workshops, electrical installations, hydraulic and pneumatic systems, manufacturing, maintenance and temporary cable or hose management.

Key Features

• 36mm diameter neodymium magnetic base
• 16mm nominal internal diameter P-Clip
• Neoprene-lined clamp
• 41kg specified magnetic pull force
• Neodymium Iron Boron (NdFeB) rare earth magnetic system
• Strong magnetic performance relative to size
• Designed for compatible hoses, cables, tubing and similar components
• Removable and repositionable mounting
• Attaches to compatible ferromagnetic steel
• Helps eliminate the need to drill or weld the supporting steel surface
• Suitable for horizontal or vertical mounting configurations where appropriately assessed
• Useful for temporary and permanent-style installations requiring future repositioning
• Permanent magnetic operation
• No electricity or batteries required

Common Applications

• Hose management
• Cable management
• Electrical wiring
• Hydraulic lines
• Pneumatic tubing
• Conduit
• Industrial machinery
• Manufacturing equipment
• Workshop installations
• Maintenance applications
• Temporary equipment setups
• Production lines
• Automotive applications
• Engineering projects
• Equipment retrofits
• Custom OEM assemblies

D36mm Neodymium Magnetic Base

The magnetic base has a specified 36mm diameter and uses high-performance Neodymium Iron Boron (NdFeB) magnetic material.

Neodymium is one of the strongest commercially available permanent magnetic materials and is particularly useful where substantial magnetic attraction is required from a relatively compact magnetic assembly.

The magnetic base allows the P-Clip assembly to attach to compatible ferromagnetic steel without requiring the supporting surface to be permanently modified.

This can be particularly useful where:

• Drilling is undesirable
• Welding is impractical
• Equipment layouts change
• Components need periodic repositioning
• Temporary installations are required
• Existing machinery needs to be retrofitted

16mm Internal Diameter P-Clip

The P-Clip has a specified nominal internal diameter of 16mm.

It is designed to support compatible cylindrical components such as:

• Hoses
• Cables
• Tubing
• Wiring
• Conduit
• Hydraulic lines
• Pneumatic lines

The actual outside diameter of the component being secured should be checked against the P-Clip before installation.

A nominal 16mm internal diameter should not automatically be interpreted as compatibility with every component described as 16mm, as actual outside diameter, wall construction, flexibility, compression and manufacturing tolerances can affect fit.

Neoprene-Lined Hose Clamp

The P-Clip incorporates a neoprene lining between the supported component and the metal clamp.

This lining can help:

• Cushion the supported component
• Reduce direct metal-to-component contact
• Reduce rubbing and chafing
• Improve grip around compatible tubing or cable
• Accommodate minor movement and vibration

The suitability of neoprene should be assessed against the operating environment, including temperature, chemicals, oils, UV exposure and other conditions relevant to the application.

41kg Magnetic Pull Force

This magnetic P-Clip has a specified pull force of 41kg.

This figure represents magnetic attraction under particular test conditions and should not be interpreted as a 41kg safe working load, lifting capacity or guaranteed holding capacity in every installation.

Real-world magnetic holding can be affected by:

• Steel thickness
• Steel composition
• Surface flatness
• Paint
• Protective coatings
• Rust
• Dirt
• Air gaps
• Magnet orientation
• Load direction
• Vibration
• Shock
• Leverage
• Dynamic movement

The magnetic mounting system should always be assessed under the actual operating conditions of the application.

Pull Force vs Safe Working Load

A magnetic pull-force rating is not the same as a safe working load.

Pull force is typically measured under controlled conditions with favourable contact against suitable steel.

A hose or cable installation can introduce additional forces that are not represented by a direct-pull test, including:

• Sideways loading
• Hose tension
• Cable weight
• Vibration
• Movement
• Fluid pressure-related movement
• Mechanical leverage
• Impact
• Repeated dynamic loading

Where failure of the magnetic mounting could cause injury, equipment damage or another hazard, appropriate secondary mechanical retention should be incorporated.

Direct Pull vs Shear Force

Magnetic holding strength varies significantly according to the direction in which the load acts.

Direct pull occurs when the magnet is pulled perpendicular to the steel surface.

Shear loading occurs when force acts parallel to the steel surface and encourages the magnetic base to slide.

For example, a magnetic P-Clip mounted to a vertical steel wall and supporting the weight of a hose may experience significant shear loading.

Practical vertical holding performance may therefore be substantially lower than the stated 41kg direct pull force.

Magnetic Hose Management

This magnetic P-Clip provides a convenient method of routing hoses across steel machinery and structures.

Potential uses include:

• Hydraulic hose routing
• Pneumatic hose management
• Air lines
• Fluid tubing
• Workshop hoses
• Equipment lines
• Temporary hose installations

Because the assembly attaches magnetically, routing can be adjusted without repeatedly drilling new mounting holes into the supporting steel.

Magnetic Cable and Wiring Management

The assembly can also provide a practical solution for controlling cables and wiring around compatible steel equipment.

Potential applications include:

• Electrical cables
• Sensor wiring
• Equipment wiring
• Data cables
• Control cables
• Machinery wiring
• Temporary electrical installations

Keeping loose cables supported and routed can help improve organisation and reduce unwanted movement around equipment.

Electrical installations should always comply with applicable electrical and workplace safety requirements.

Removable and Repositionable Mounting

One of the key advantages of a magnetic P-Clip is its ability to be removed and repositioned without permanently altering the supporting steel surface.

This can be valuable for:

• Machinery that is regularly reconfigured
• Temporary installations
• Prototypes
• Testing equipment
• Production line changes
• Maintenance work
• Rental equipment
• Equipment retrofits

The magnetic assembly can be relocated when hose or cable routes change, subject to suitable steel being available at the new mounting position.

Magnetic Attachment and Air Gaps

For maximum practical attraction, the magnetic base should make close contact with a clean, flat and sufficiently thick ferromagnetic steel surface.

Magnetic holding can be reduced by gaps caused by:

• Paint
• Powder coating
• Protective coatings
• Dirt
• Rust
• Uneven steel
• Curved surfaces
• Contamination

Magnetic attraction decreases rapidly as the distance between the magnetic base and target steel increases.

Compatible Mounting Surfaces

The magnetic base is designed to attract ferromagnetic iron and compatible steels.

Suitable surfaces may include:

• Mild steel
• Iron
• Magnetic steel
• Steel machinery
• Compatible equipment frames
• Ferromagnetic structural components

It will not effectively attach magnetically to:

• Aluminium
• Copper
• Brass
• Plastic
• Timber
• Glass

Many stainless steel grades may also be weakly magnetic or non-magnetic and should be tested before use.

Installation Considerations

Before installing the magnetic P-Clip:

1. Confirm the hose, cable or tubing outside diameter is compatible with the 16mm nominal internal diameter.
2. Confirm the mounting surface is ferromagnetic.
3. Clean the steel surface and magnetic base.
4. Position the magnetic base against a flat area of steel.
5. Check that the assembly is stable in the intended orientation.
6. Route the hose, cable or tube without excessive tension.
7. Test the installation under realistic operating conditions.
8. Consider vibration, movement, shock and dynamic loading.
9. Add secondary retention where failure could create a hazard.

Avoid placing excessive tension on the hose or cable, as this can create leverage that reduces effective magnetic holding.

Permanent Magnetic Operation

The magnetic base uses a permanent neodymium magnetic system.

It requires:

• No electricity
• No batteries
• No charging
• No electrical wiring

The magnetic attachment remains continuously active during normal use.

Technical Specifications

• Product Type: Neodymium Hose Clamp P-Clip Magnet
• Alternative Names: Magnetic Hose Clamp, Magnetic P-Clip, Magnetic Cable Clamp, Magnetic Hose Holder, Neodymium Pipe Clamp
• Magnetic Base Diameter: 36mm
• P-Clip Internal Diameter: 16mm nominal
• P-Clip Lining: Neoprene
• Magnetic Material: Neodymium Iron Boron (NdFeB)
• Specified Pull Force: 41kg
• Magnet Type: Rare Earth Permanent Magnet
• Magnetic Operation: Permanent
• Power Required: None
• Target Surfaces: Compatible ferromagnetic iron and steel
• Primary Functions: Hose, cable, tubing and wiring support
• Typical Applications: Machinery, manufacturing, workshops, hydraulic systems, pneumatic systems, electrical installations and maintenance

Industrial and Machinery Applications

The combination of a 36mm neodymium magnetic base, 16mm internal diameter P-Clip and neoprene lining makes this assembly suitable for a range of industrial hose and cable management applications.

Potential users include:

• Machinery manufacturers
• Maintenance technicians
• Mechanical engineers
• Electrical contractors
• Hydraulic technicians
• Pneumatic system installers
• Manufacturing facilities
• Automotive workshops
• Industrial equipment operators
• OEM manufacturers

The removable mounting system can be particularly useful where equipment layouts or cable and hose routes may change over time.

Please Note

This product is a Neodymium D36mm Hose Clamp P-Clip Magnet with a neoprene-lined 16mm nominal internal diameter and a specified magnetic pull force of 41kg.

The 36mm dimension refers to the magnetic base diameter, while the 16mm dimension refers to the nominal internal diameter of the P-Clip. These dimensions should not be interpreted as the overall dimensions of the complete assembly.

The stated 41kg pull force is a magnetic test value and is not a 41kg safe working load or guaranteed practical holding capacity.

Actual magnetic holding depends on target steel thickness and composition, surface flatness, coatings, air gaps, orientation, shear loading, hose or cable tension, leverage, vibration, shock and dynamic movement.

Verify the actual outside diameter of the hose, tubing, cable or conduit before installation to ensure suitable P-Clip fit.

Where failure could result in injury, equipment damage or another hazard, use appropriate secondary mechanical retention rather than relying solely on magnetic attraction.

Keep strong neodymium magnets away from children, pacemakers and other medical implants, magnetic storage media and sensitive electronic equipment.
