WELCOME TO OUR ONLINE MAGNET SHOP

Maglab supplies the most suitable magnets at the lowest cost.

3If you know the type of magnet required make a selection from these categories.

QUANTITY DISCOUNTS OF UP TO 65% AVAILABLE ON MOST MAGNETS.

Selecting the most appropriate magnet for your application without face to face communication, is very difficult.

Our 15 years experience in the magnet industry has taught us the questions most asked when selecting a magnet.

The following table of questions has been designed to ensure the magnet you select is the most appropriate.

Is the magnet required:

1.  A holding magnet
2.  A repelling magnet
3.  Used to separate steel pieces
4.  Need to be strong for its size
5.  Particularly weak
6.  Inexpensive
7.  Magnetised through its length
8.  Have a hole for mounting
9.  Operate above 80 degrees C
10.  Operate reed or hall effect switches



Question No.	1	2	3	4	5	6	7	8	9	10
Type of Magnet

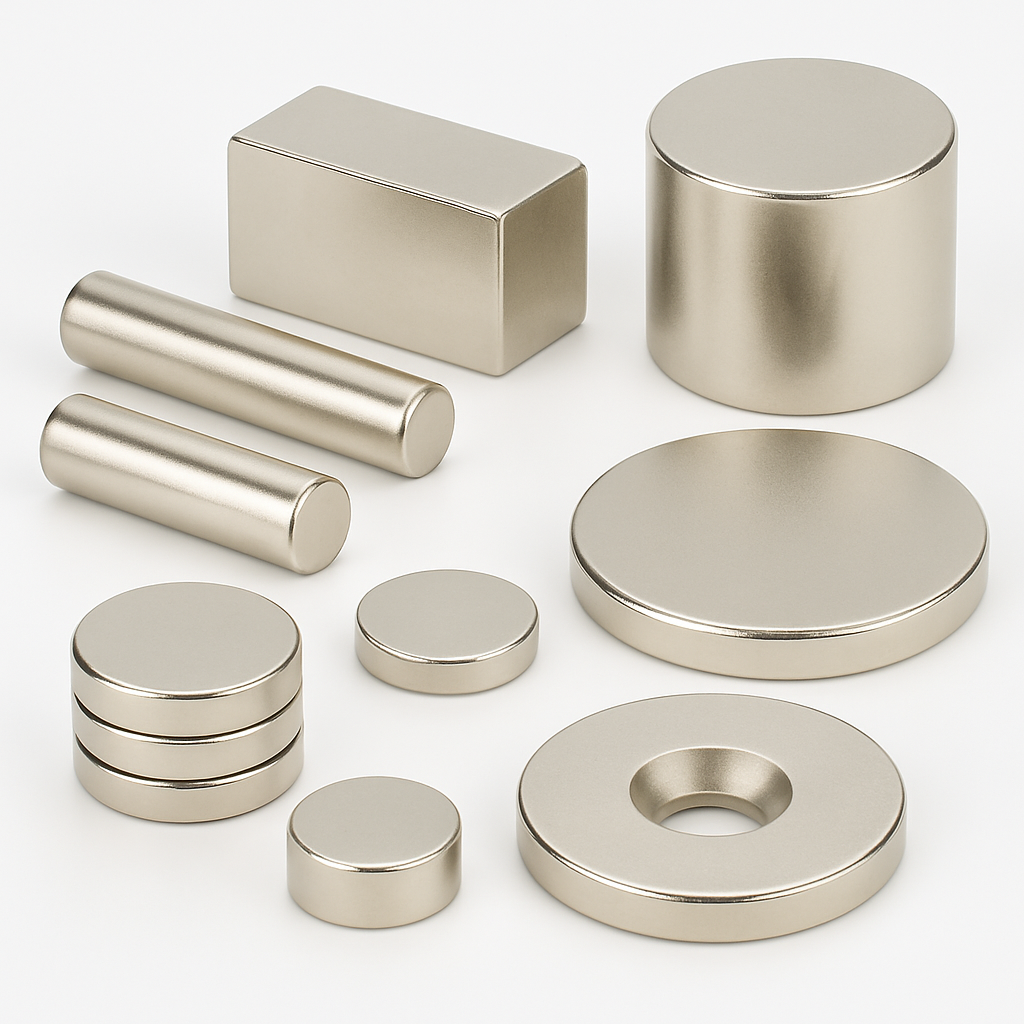

Neodymium
Disc, Block, Bar	A	A	S	A		S				B
Ring	A	A	S	A		A		A
Discs Capped	B			A		A

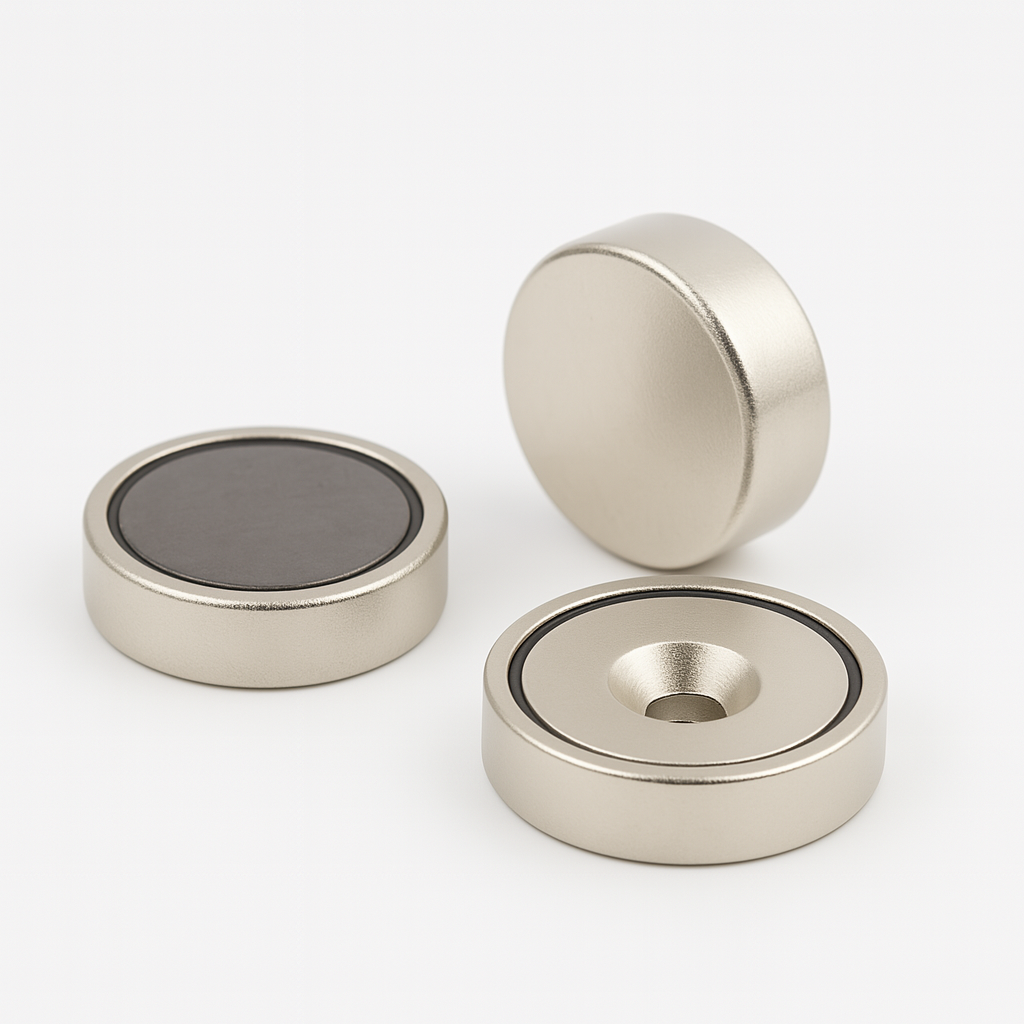

Shallow Pot	B			A		A		A

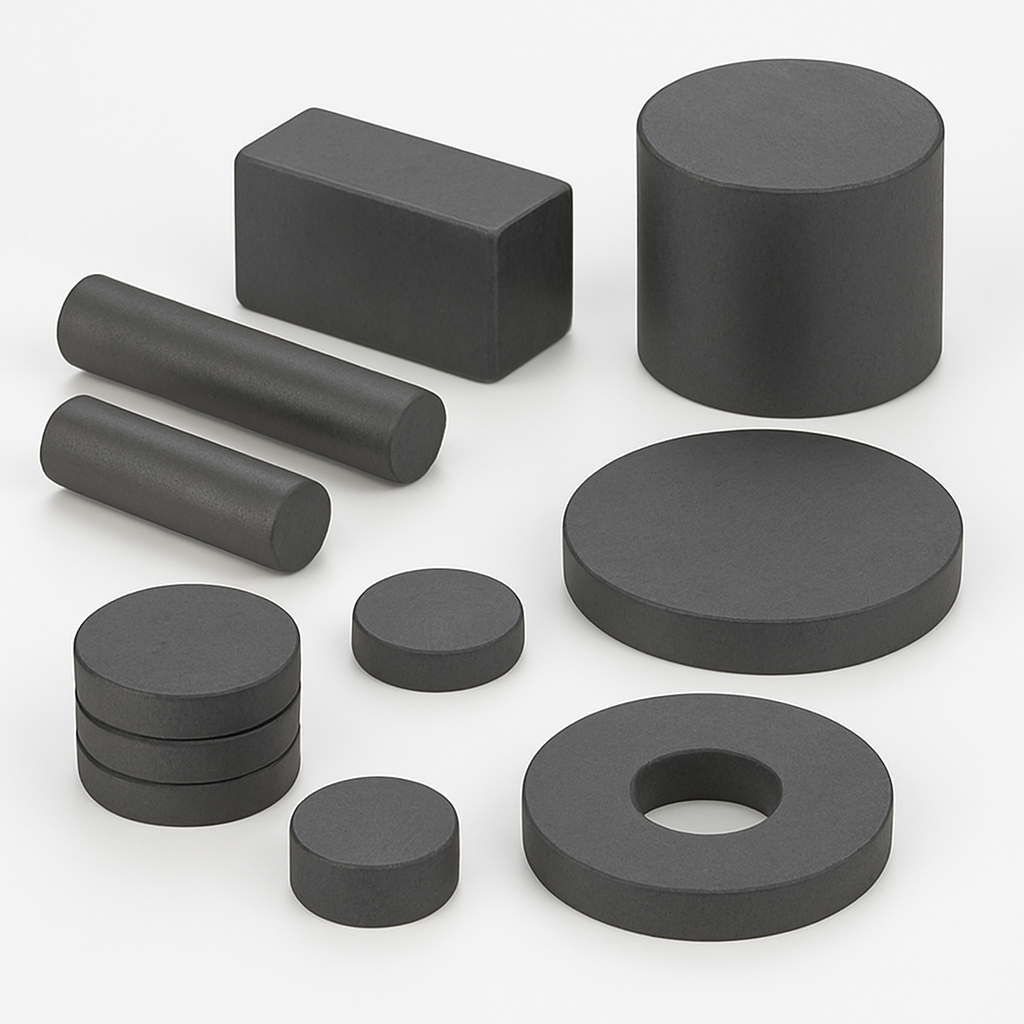

Ferrite
Disc, Block, Bar	A	A	S			B	S	S	A	A
Ring	A	A	S			B	S	A	A
Disc Capped	B					B			A
Disc Single Side	B					B			A
Disc Isotropic	A	A			A	B			A
Shallow Pot	B							A	A

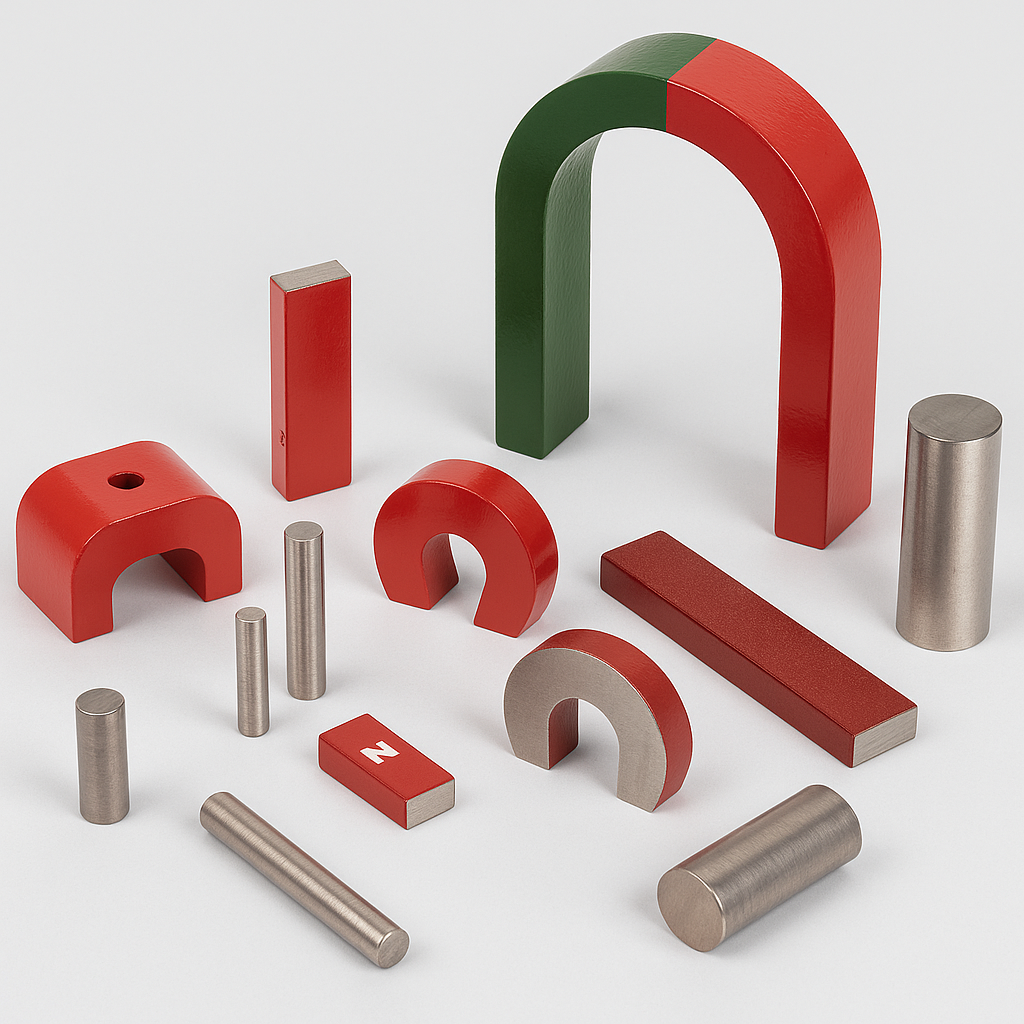

Alnico
Rods & Blocks	A	A					A		B	B
Pot, Shallow Pot	B							A	B
Button, Power	B							A	B
Samarium Cobalt	A	A	S	A					B

 A=ALL, S=SOME, B=BEST
